Product information

AluSpace Interior Screening System

Creating space, elegantly and efficiently

The AluSpace Interior Screening System has been developed to create light and airy internal environments. The system’s sleek and elegant lines perfectly complement our window and door ranges.

AluSpace can be used to divide or delineate both residential and commercial spaces of any shape and size, while at the same time providing an effective acoustic barrier.

With a choice of hinged single and double doors, as well as pivot and sliding options to accompany the fixed glazed screen, the flexible and versatile system provides almost limitless design possibilities.

The elegant system requires only minimal maintenance, with the high quality design providing many years of assured, reliable performance.

Divide or delineate internal space

AluSpace screens can be used to create and configure internal space across a wide range of applications.

  • Elegant, slim design style
  • Hugely versatile and flexible system
  • High quality manufacture
  • Low maintenance

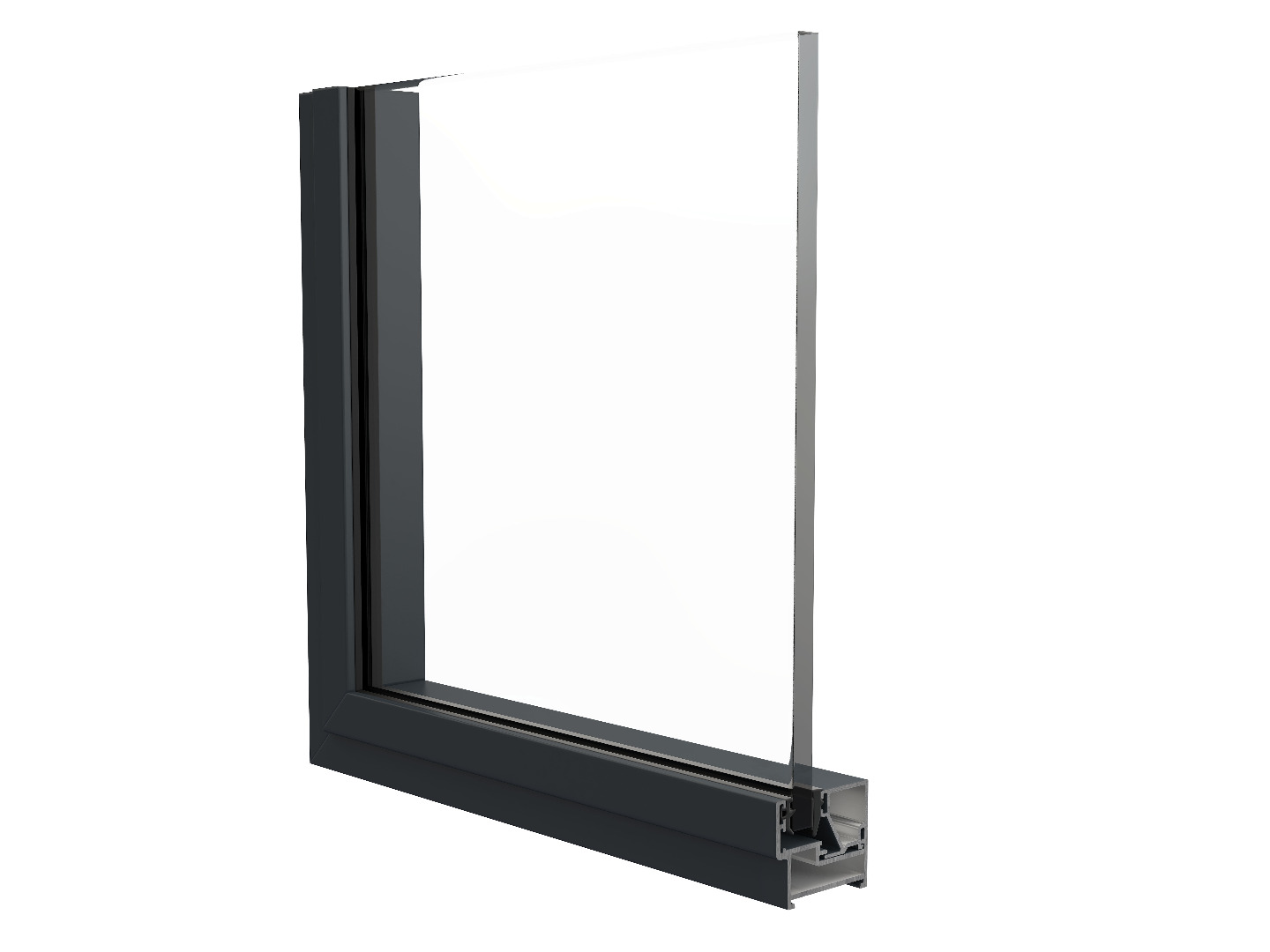

Fixed Screens

AluSpace fixed sceens give architects and interior designers the opportunity to elegantly partition living or working spaces.

FIXED SCREEN DESIGN LIMITATIONS
MAXIMUM WIDTH (MM)1400
MAXIMUM HEIGTH (MM)2500

The fixed screen sizes above are based on INT255 coupler limit at 0.8kN/m. Size limits can vary depending on application and the category of building. Please refer to Approved Document K and CWCT for further information on the required loading of your project.

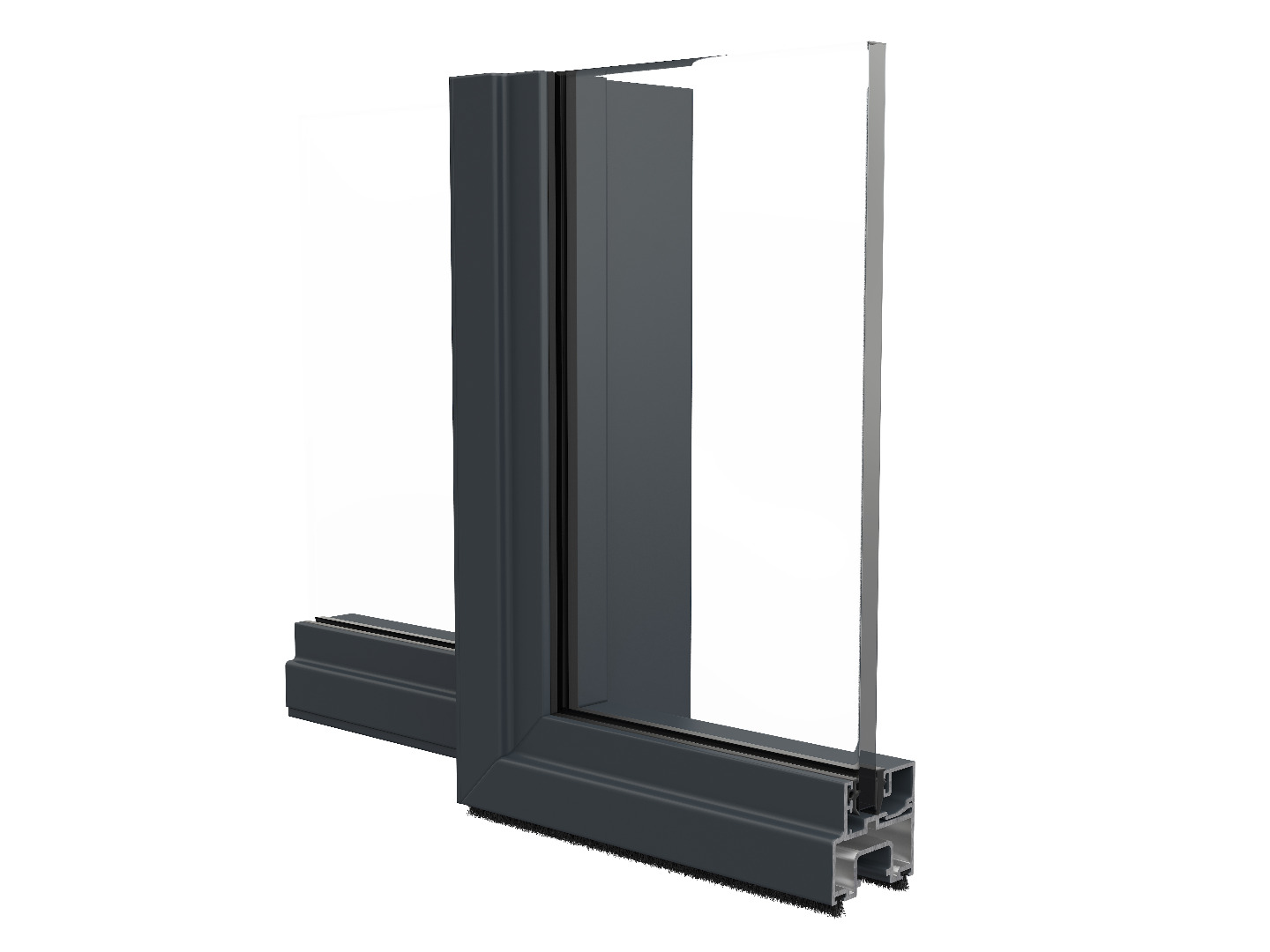

Hinged Doors

With a range of width, glazing, hinge and furniture options, our doors can be configured to suit any design theme, from traditional to minimalist and contemporary to industrial.

HINGED DOOR SASH DESIGN LIMTATIONS
MAXIMUM WIDTH (MM)900
MINIMUM WIDTH (MM)400
MAXIMUM HEIGTH (MM)2200
MAXIMUM WEIGHT (KG)60
DOORSINGLE OR DOUBLE
GLAZING (MM)6, 8 OR 18
COLOURSINGLE COLOUR

Pivot Doors

Our pivot screen options provides the flexibility to instantly change the way the internal space is configured. Available up to 2 metres wide and with standard or soft close options.

PIVOT DOOR SASH DESIGN LIMITATION
MAXIMUM WIDTH (MM)2000
MINIMUM WIDTH (MM)400
MAXIMUM HEIGTH (MM)2500
MAXIMUM WEIGHT (KG)100
DOORSINGLE
GLAZING (MM)6, 8 OR 18
COLOURSINGLE COLOUR

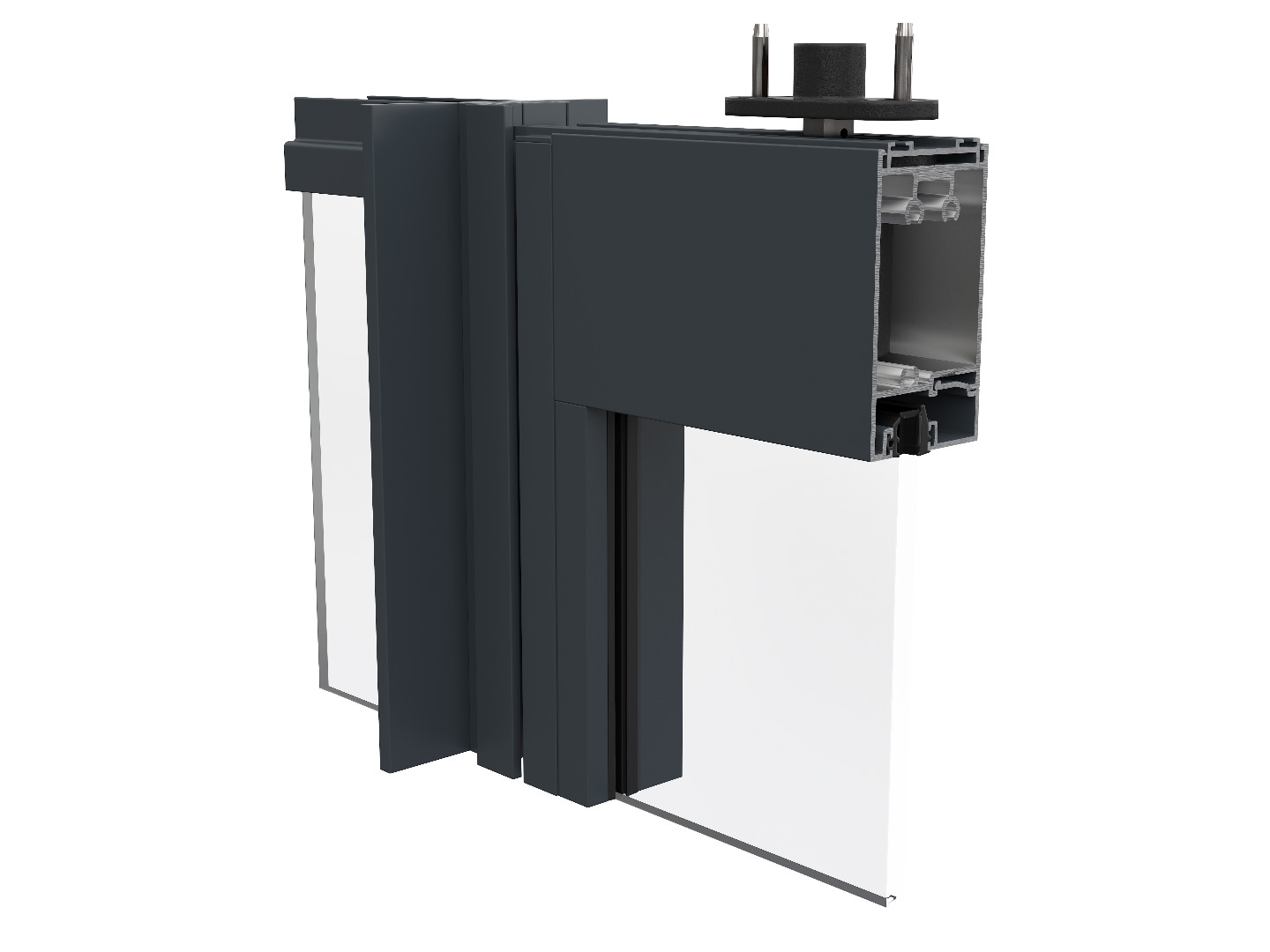

Sliding Doors

Sliding doors provide the option to close or partially open the internal screen, with a choice of a contemporary or vintage rail options to echo the overall design.

SLIDING DOOR SASH DESIGN LIMITATIONS
MAXIMUM WIDTH (MM)1200
MINIMUM WIDTH (MM)400
MAXIMUM HEIGTH (MM)2500
MAXIMUM WEIGHT (KG)100 (WITH ACINT313 ROLLERS)
DOORSINGLE
GLAZING (MM)6, 8 OR 18
COLOURSINGLE COLOUR

BrandAluSpace
MaterialAluminium
Single Door Max Width (mm)900
Single Door Max Height (mm)2200
Sliding Door Max Width (mm)1200
Sliding Door Max Height (mm)2500
Glazing (mm)6, 8 or 18
Frame Depth (mm)35
Typical Sightlines (mm)35 - 69.5
