Product information
The new high-quality, high-performance Visotherm window and door ranges have been introduced to enhance Smart’s established systems portfolio, with the range having been developed to provide optimal levels of thermal performance using double or triple glazed sealed units.
The system is the ideal choice for both new build and refurbishment commercial and residential projects, where optimum performance and outstanding thermal performance are specified.
Visotherm is manufactured by Smart in Britain and is available in a choice of standard and non-standard colours, with single and dual colour options including Smart’s own Naturals, Sensations, Alchemy and Cotswold colour ranges.
- New Polyamide Thermal Break - profiles feature new polyamide strips produced with the latest low lambda material

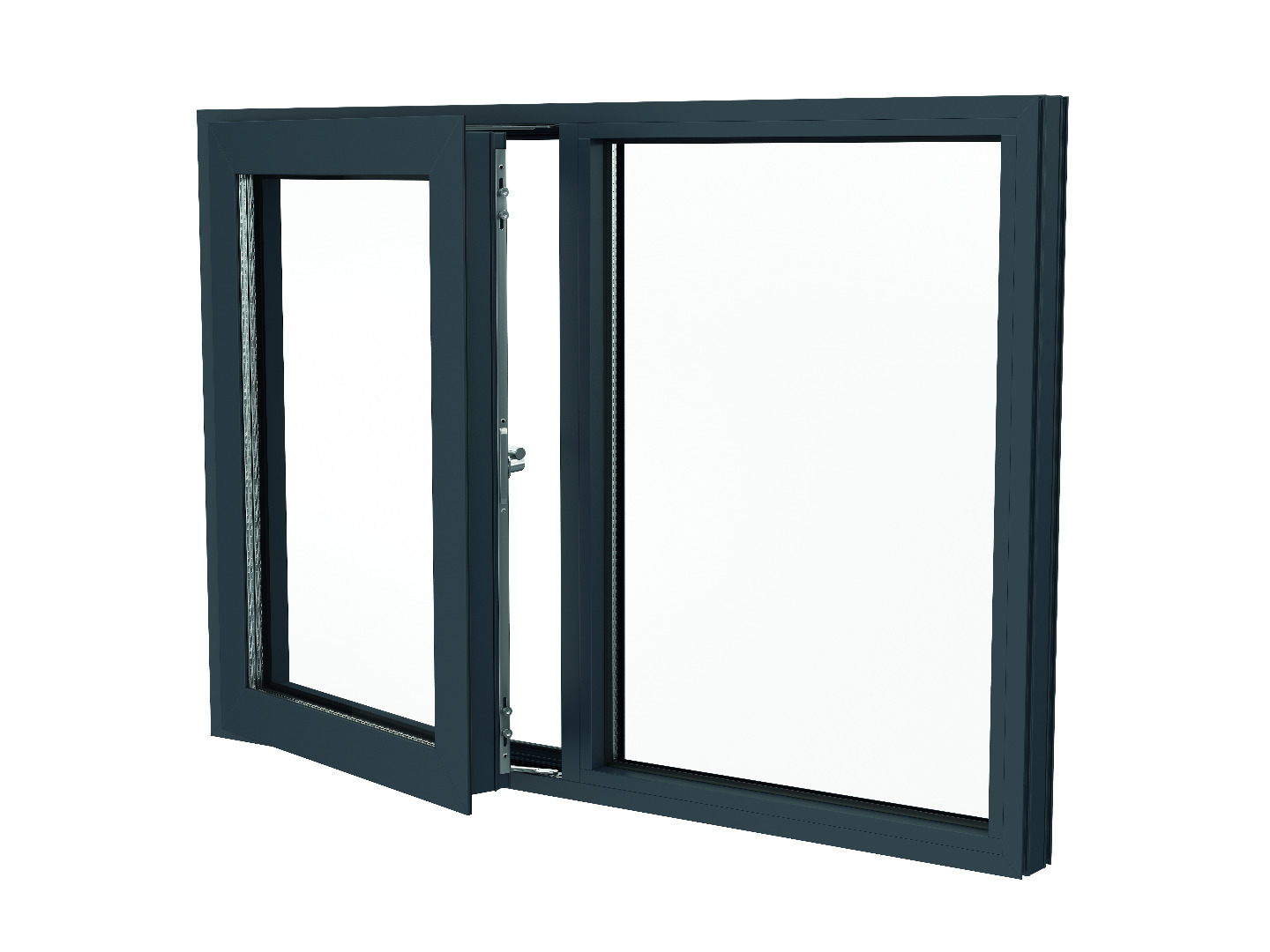

- Window option: Open-out, top-hung, side-hung and fixed casement

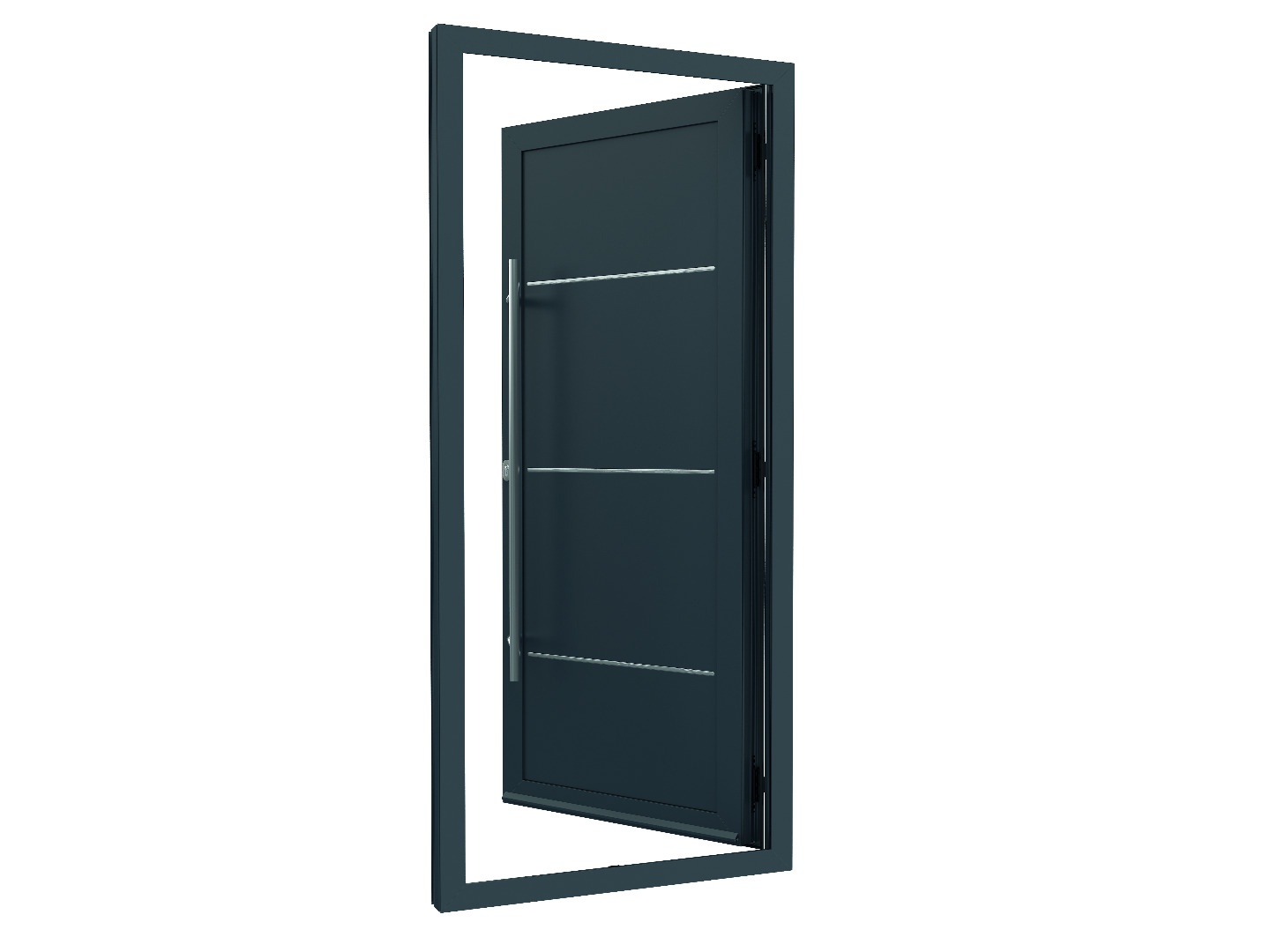

- Door options: Open-in or open-out single and double door options
- Suitable for residential and commercial applications
- Typical U-values from 1.3 W/m2K (using 1.0 W/m2K centre panel)
- PAS 24:2016 specification as standard
- British Standard Kitemark
- Low maintenance
Brand | Visotherm |
Material | Aluminium/PVC |
Dual Colour | Yes |
Thermally Broken | Yes |
NBS Available | Yes |
WER Rating | A |
U Value | 1.3 W/m2K (1.0 centre pane) |
Document L Compliant | Yes |
Kitemark | Yes |
Side Hung Max Width (mm) | 840 |
Side Hung Max Height (mm) | 1440 |
Top Hung Max Width (mm) | 1440 |
Top Hung Max Height (mm) | 2500 |
Fixed Max Width (mm) | 1600 |
Fixed Max Height (mm) | 2400 |
Tilt Turn Max Width (mm) | 1600 |
Tilt Turn Max Height (mm) | 2400 |
Single Door Max Width (mm) | 1200 |
Single Door Max Height (mm) | 2500 |
