Product information

Alitherm 700 is an innovative solution for enhanced natural ventilation. The system allows for a balanced, effective airflow whilst maintaining security and safety. The system can also be either a side or top hung casement, or top swing reversible window.

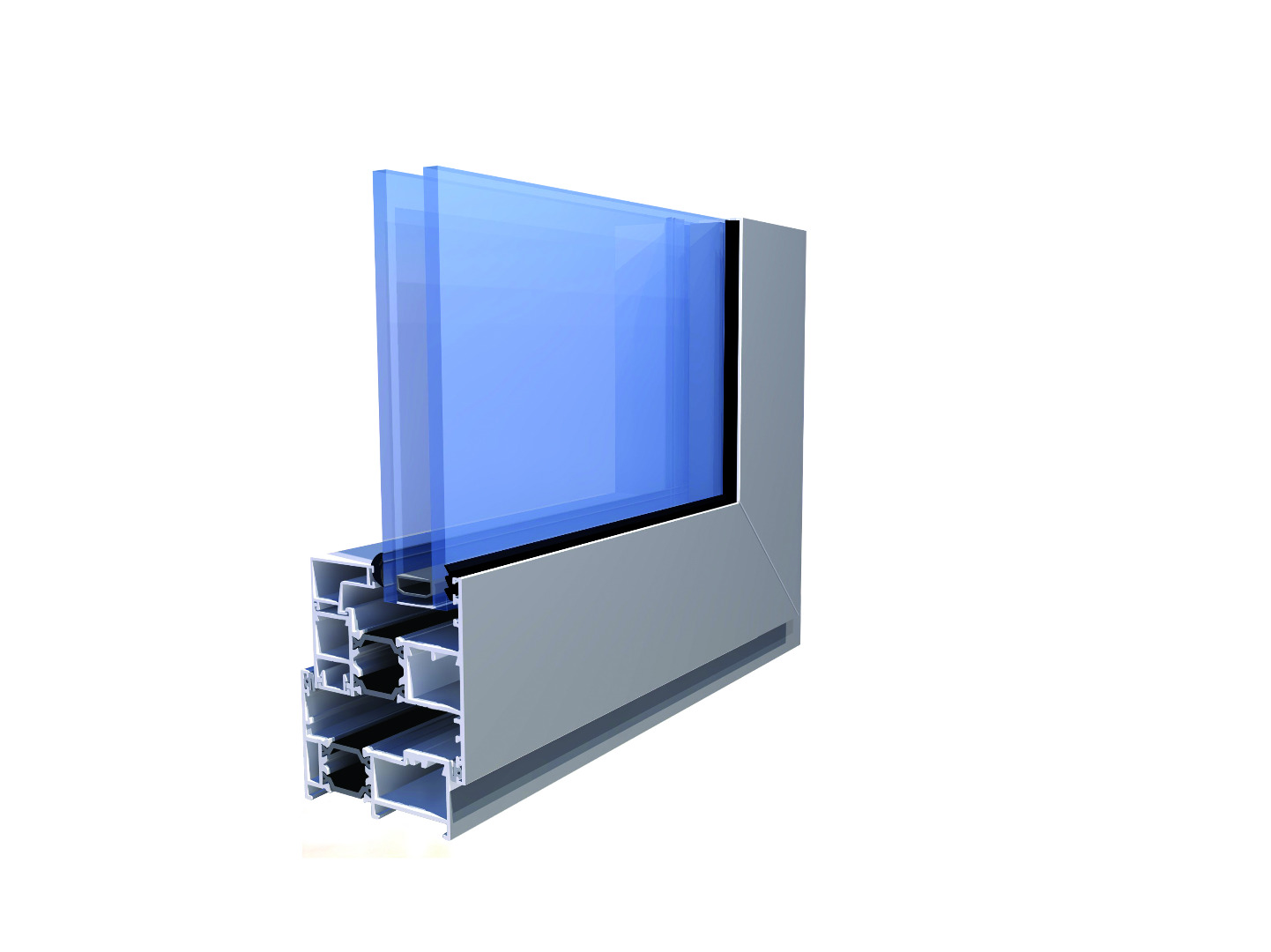

Alitherm profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product and is designed to meet the exacting requirements of Document L 2010.

Alitherm products are available in a choice of standard or non-standard colours, including metallic, dual colour, Smart’s Sensations textured, and Alchemy anodised effect finishes.

  • Alitherm 700 is ideal for insertion into curtain wall facades in both low and high rise commercial buildings
  • The system is suitable for use as either replacement windows in existing buildings, or for installation into new builds
  • Alitherm 700 incorporates internally beaded vents suitable for either cockspur or shoot-bolt locking.
  • The system is also suitable for use with chain-operators, operated either individually or as part of an integrated automated solution for building climate control
  • Smoke ventilation available soon. Check with your supplier
  • British Standard Kitemarked system: KM 815580 PAS 24:2102, KM 81543 BS4873

MaterialAluminium Polyamide
Dual ColourYes
Thermally BrokenYes
NBS AvailableYes
WER RatingA
U Value1.6W/W/m²K (using correct glass unit)
Document L CompliantYes
BS 6375-1:2009Yes
BS 7950:1997Yes
BS 4873Yes
Side Hung Max Width (mm)838mm
Side Hung Max Height (mm)1729mm
Top Hung Max Width (mm)1729mm
Top Hung Max Height (mm)2000mm
Reversible Max Width (mm)1500mm
Reversible Max Height (mm)1558mm
Parallel Max Width (mm)2000mm
Parallel Max Height (mm)3000mm
Parallel Max Weight (kg)100kg - sashes above 100kg or 1500mm wide should be motorised operation only
Glazing (mm)28mm double or triple glazed units
Frame Depth (mm)70mm
