Alitherm Heritage provides the ideal solution for heritage applications such as listed building renovations and large scale replica-refurbishment projects where planning constraints are to be considered. The window is designed to be built as a series of horizontal modules which can be stacked using horizontal couplers to form a multi-part window featuring a specially design drip bar between modules.
Alitherm Heritage profiles utilise Smart’s innovative polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product and is designed to meet the exacting requirements of Document L 2010.
Alitherm Heritage products are available in a choice of standard or non-standard colours, including metallic, dual colour, Smart’s Sensations textured, and Alchemy anodised effect finishes.
Please note, Alitherm Heritage has been tested to PAS 24: 2016 for casement windows and fixed lights only.
Alitherm Heritage Window: Design Limitation and Performance
- Security tested to PAS 24:2016 (casement windows & fixed lights only)
- Weather tested to BS 6375 Part 1:2009
- British Standard Kitemark KM 81543
- British Standard Kitemark KM 81580
- Fixed windows,tilt turn, side hung or top hung open out casements
- Polyamide thermal break provides enhanced thermal performance
- Designed as a direct replacement for steel windows
- Single or dual colour, marine quality polyester powder coat as standard
- 316 Marine Grade Stainless Steel Hardware options
- Heritage and Art Deco hardware options
| Window Type | Max Length (mm) | Max Height (mm) | Max Area (m2) | Friction Stays (up to & inc) | Transom/Mullion Len (mm) inc Frame Max | Air Permeability Classification | Watertightness Classification | Resistance to Wind | Exposure Cat. as given in Table 1 of BS 6375-1:2009 |
|---|
| Projecting Top Hung Int Bead | 1400 | 1400 | - | 24" | - | 4 | 7A | AE2400 | 2000+ |
| Projecting Top Hung Ext Bead | 1400 | 1400 | - | 24" | - | 4 | 5A | AE2400 | 2000+ |
| Projecting Side Hung Int Bead | 600 | 1400 | - | 16" | - | 4 | 7A | AE2400 | 2000+ |
| Projecting Side Hung Ext Bead | 600 | 1400 | - | 16" | - | 4 | 5A | AE2400 | 2000+ |
| Fixed Int Bead | 2100 | 2100 | 4.2 | - | - | 4 | 7A | AE2400 | 2000+ |
| Fixed Ext Bead | 2100 | 2100 | 4.2 | - | - | 4 | 5A | AE2400 | 2000+ |
| Multilights W20035 T/M Int Bead | 2100 | 2100 | 2.5 | - | 1450 | 4 | 7A | AE2400 | 2000+ |
| Multilights W20035 T/M Ext Bead | 2100 | 2100 | 2.5 | - | 1450 | 4 | 5A | AE2400 | 2000+ |

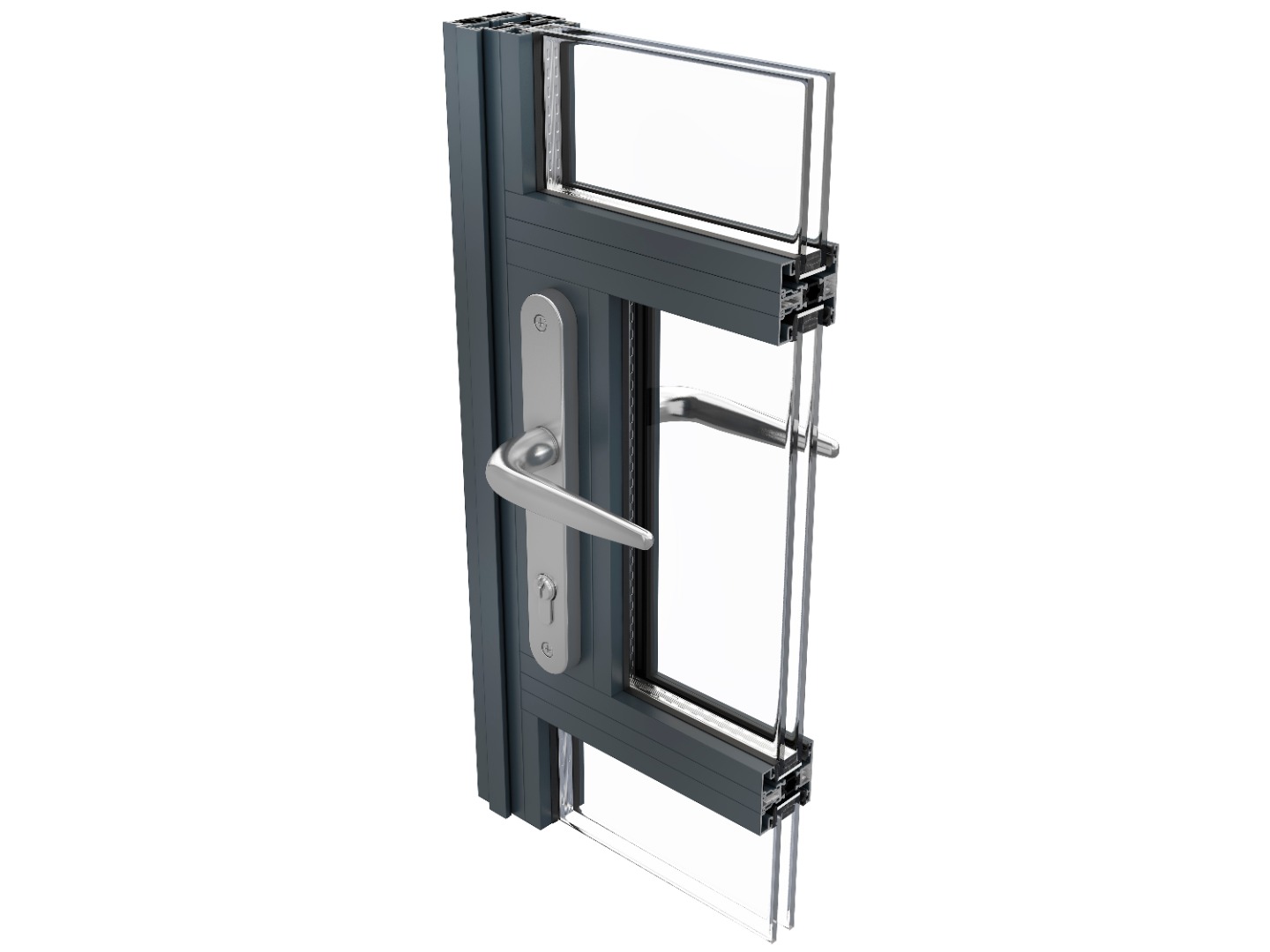

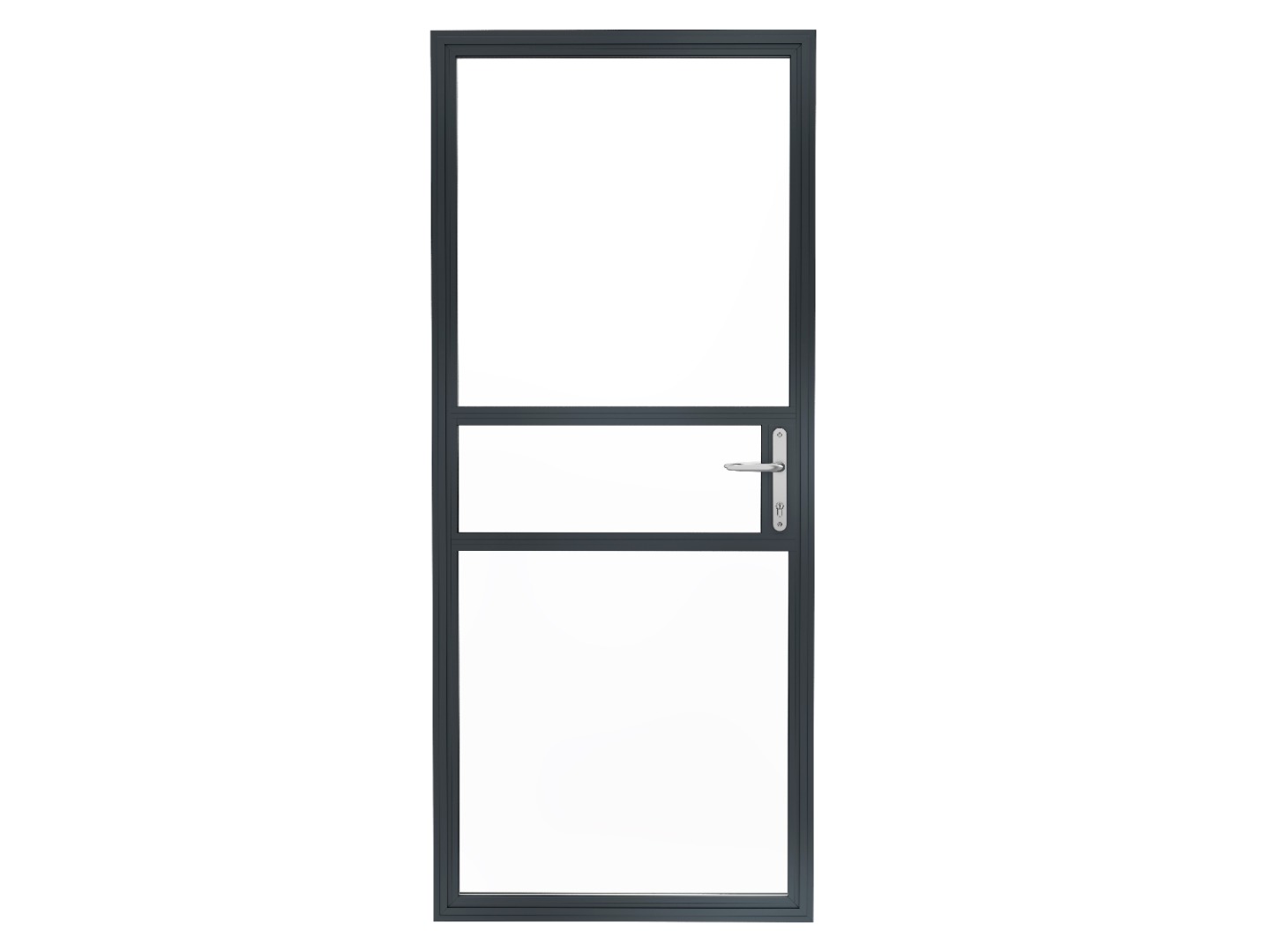

Alitherm Heritage Door: Design Limitation and Performance
- Single or double doors
- Slim sightlines
- Tape or gasket glazed
- Multi point locking and face mounted shoot bolts
- Polyamide thermal break provides enhanced thermal performance
- Single or dual colour, marine quality polyester powder coat as standard
- 316 Marine Grade Stainless Steel Hardware options
- Heritage and Art Deco hardware options
| Door Type | Max Sash Width (mm) | Max Sash Height (mm) | Glazing (mm) | Typical Sightline (mm) |
|---|
| Single Door | 900 | 2100 | 24-32 | 59 |
| Double Door | 900 | 2100 | 24-32 | 59 |

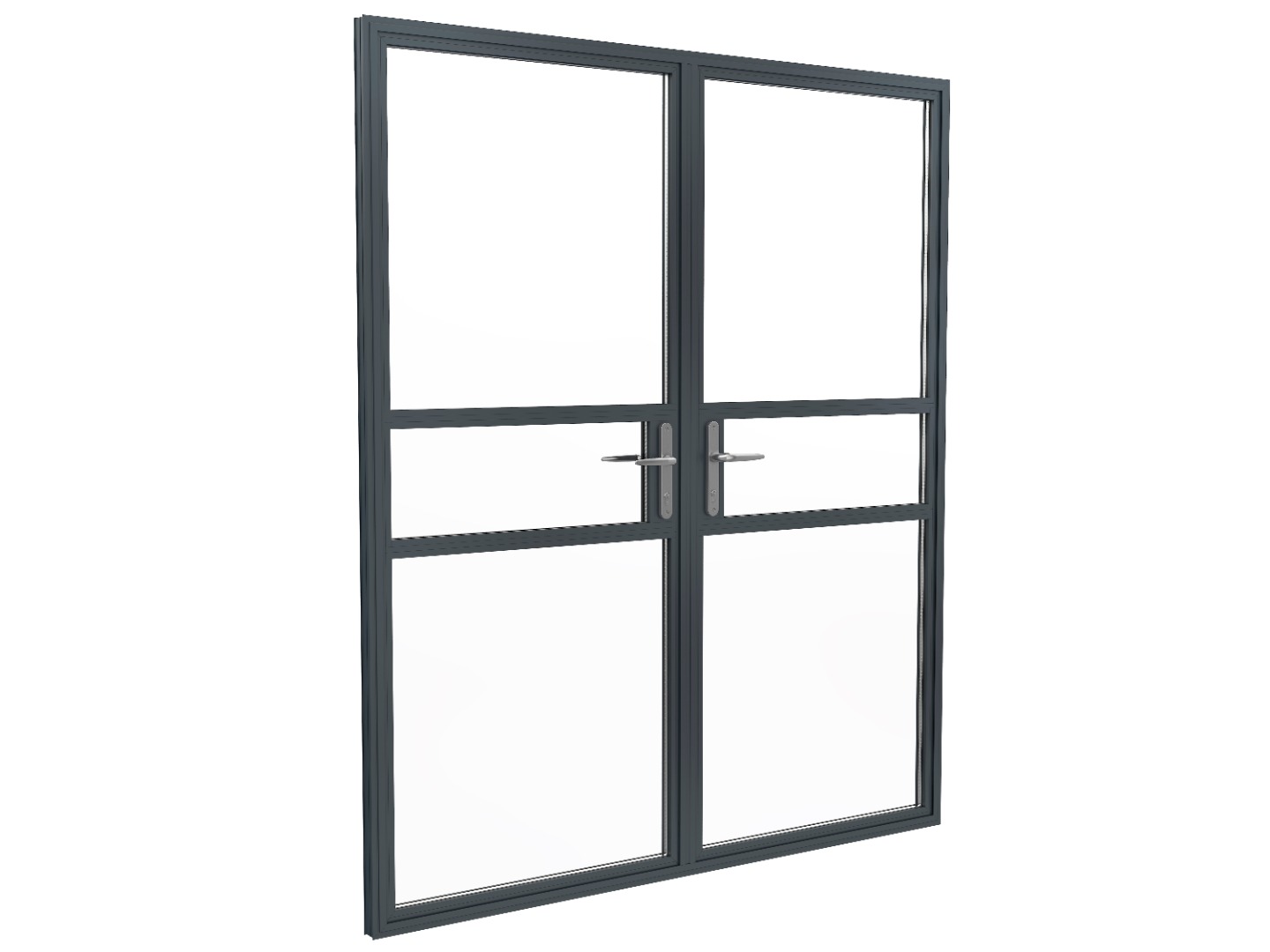

Alitherm Heritage Double Door: Design Limitation and Performance
- Weather tested to BS6375 Part 1
- Operation & Strength BS6375 Part 2
- Additional Performance Characteristics BS6375 Part3
- Security tested PAS24:2016
| Door Type | Air Permeability Classification | Watertightness Classification | Resistance to Wind |
|---|
| Open In | 4, 600Pa | 3A, 100PA | 3, 1200Pa |
| Open Out | 4, 600Pa | 8A, 450Pa | 3, 1200Pa |
