Product information

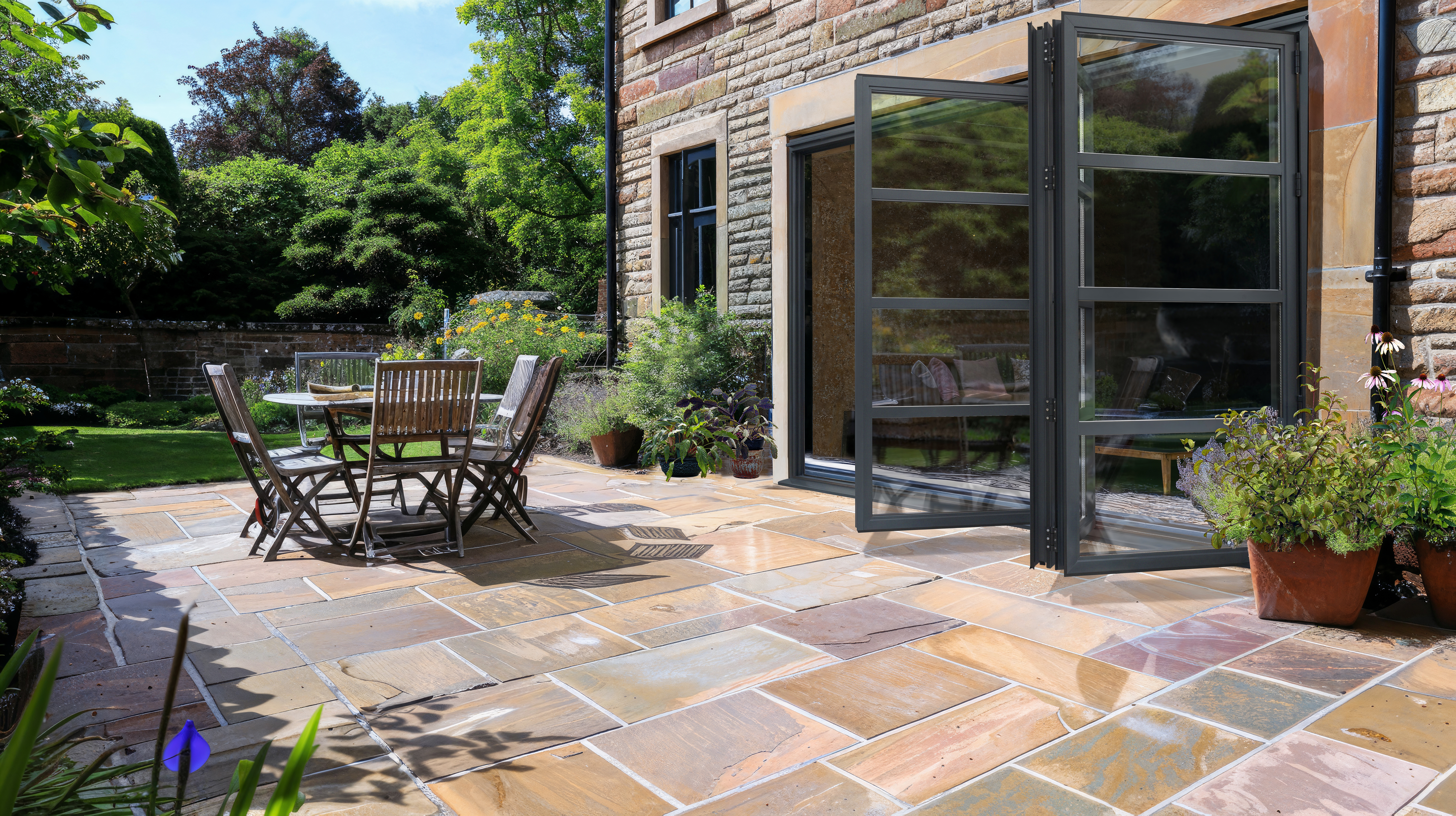

Smart’s Visofold 1000 is the UK’s most popular aluminium bi-fold door, delivering a range of benefits for the fabricator, installer and end user.

The latest upgrade to the Visofold 1000 bi-fold door features a range of enhancements that deliver significantly improved U-values, as well as easier and quicker fabrication and installation.

Improved thermal performance

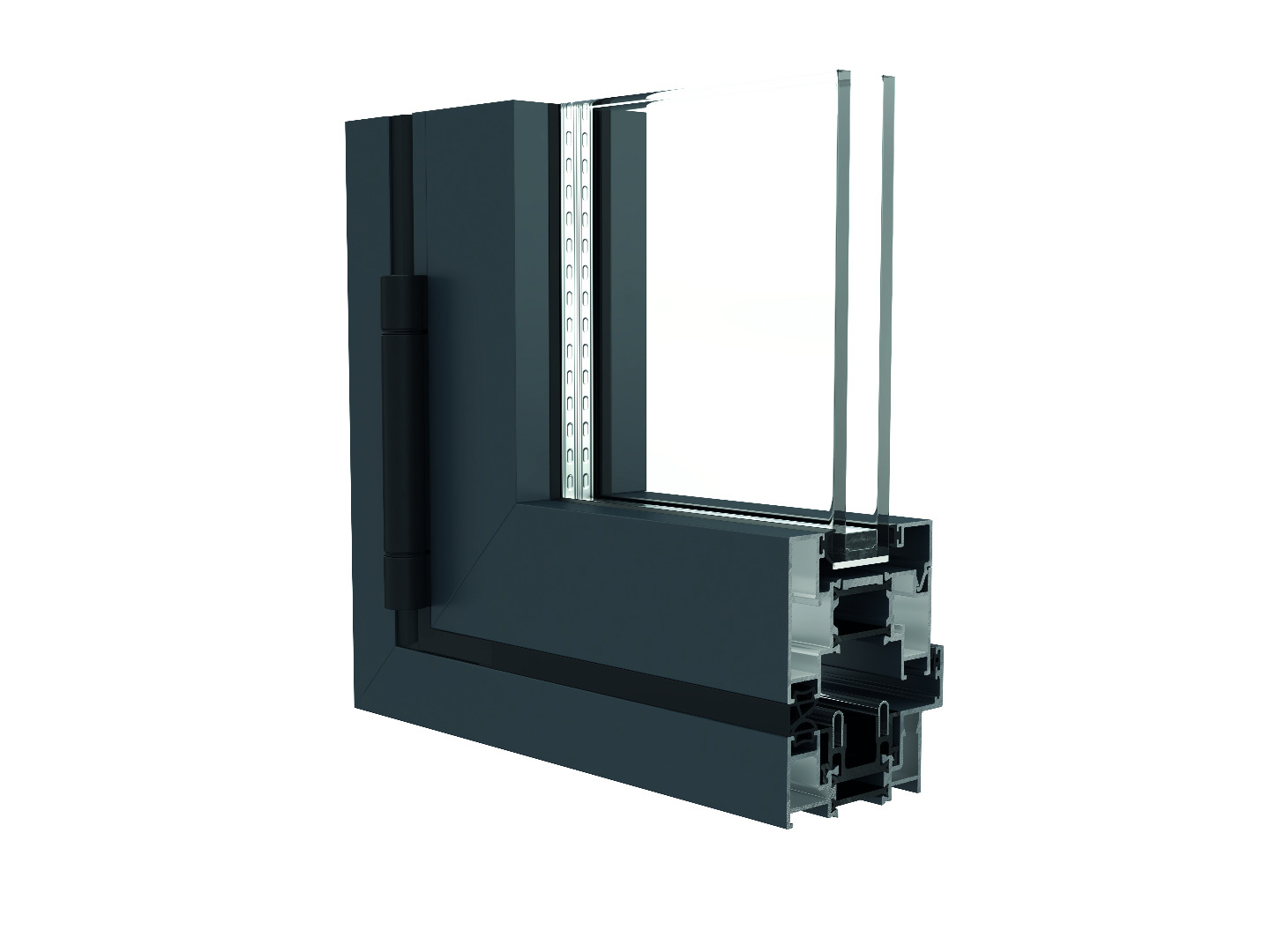

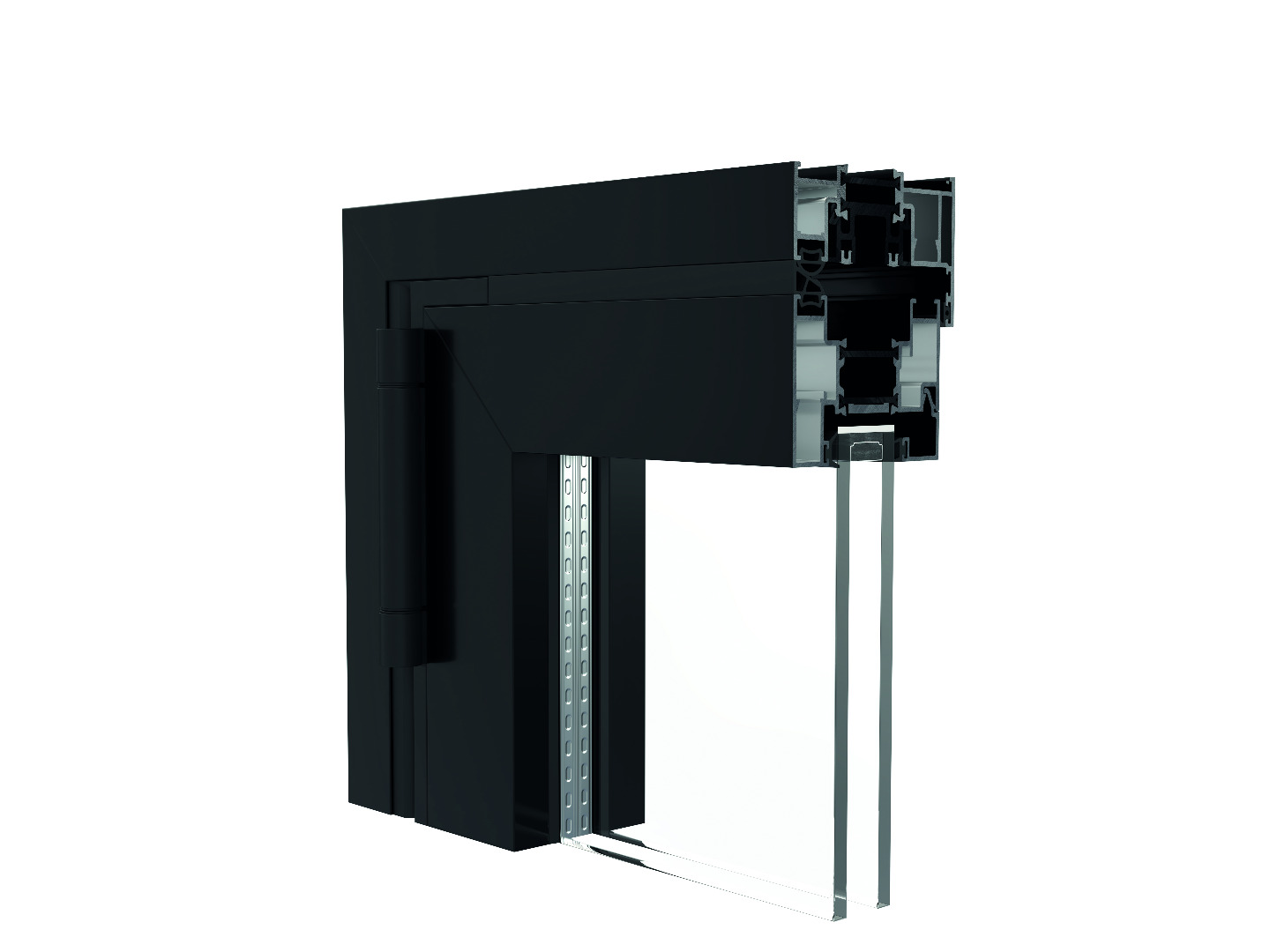

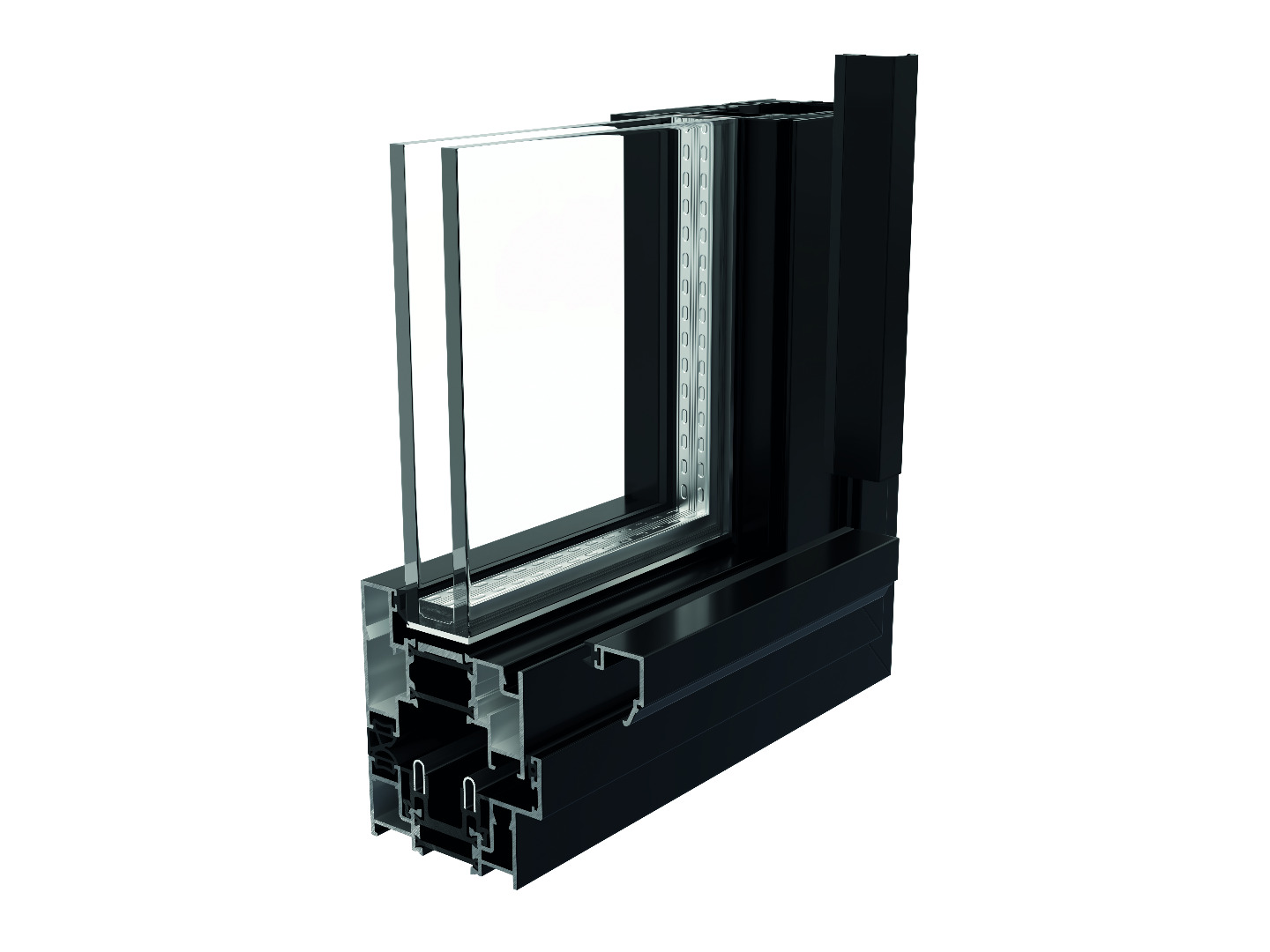

While retaining the same overall dimensions and slim sight lines that are such a striking feature of the Visofold 1000 design, new outer frame profiles now incorporate a wider 30mm polyamide thermal break, an increase of more than 60% compared to the 18.6mm break in the original design.

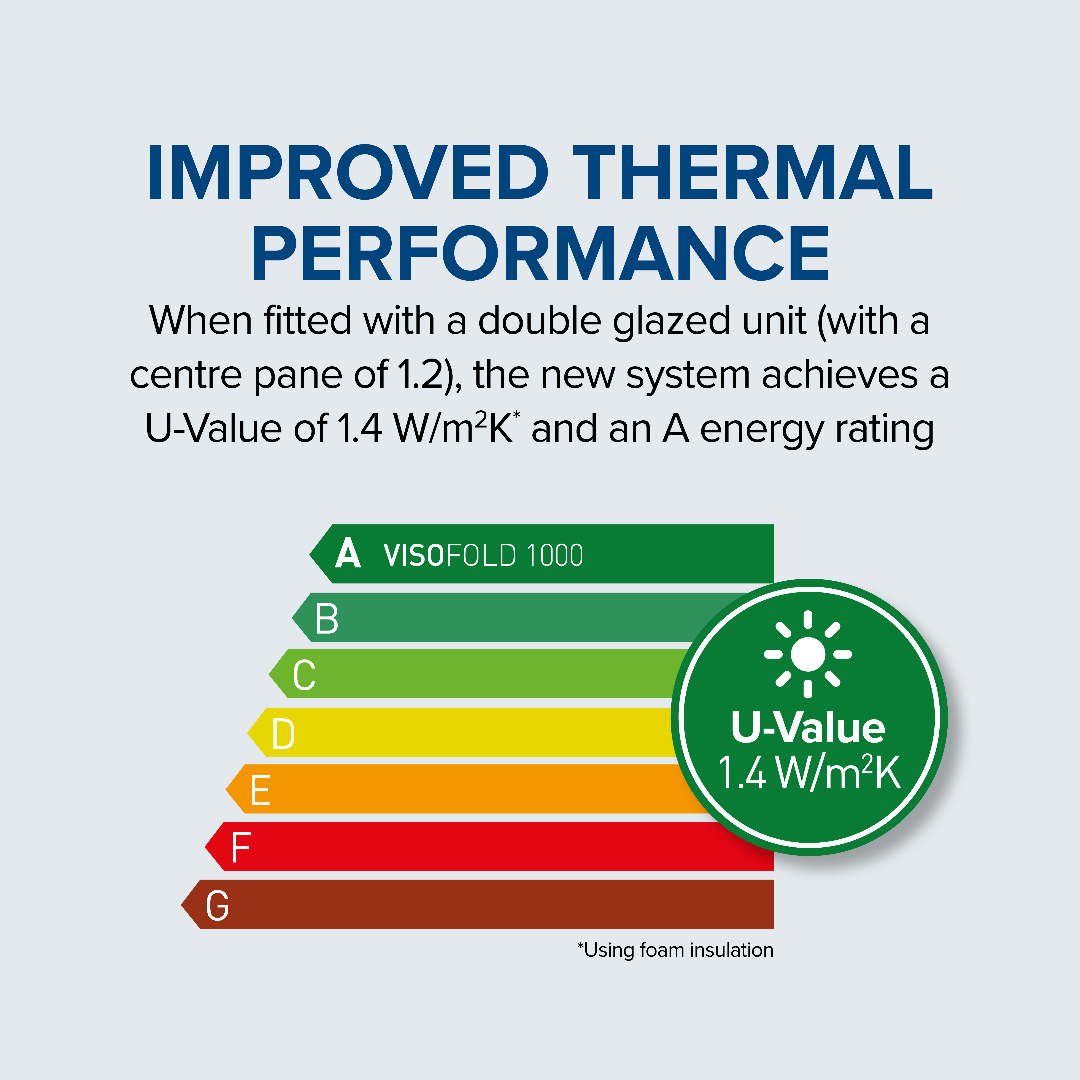

When fitted with a double glazed unit with a centre pane of 1.2, this achieves a U-Value of 1.4 and an A energy rating, the slim profiles allowing as much sunlight in to the room as possible to maximise solar gain.*
*Note: the U-values are calculated with foam insulation added to the profiles.
The system also features a new track insert (DV100), with the polyamide section simply clipping into the track.

More Profile Options

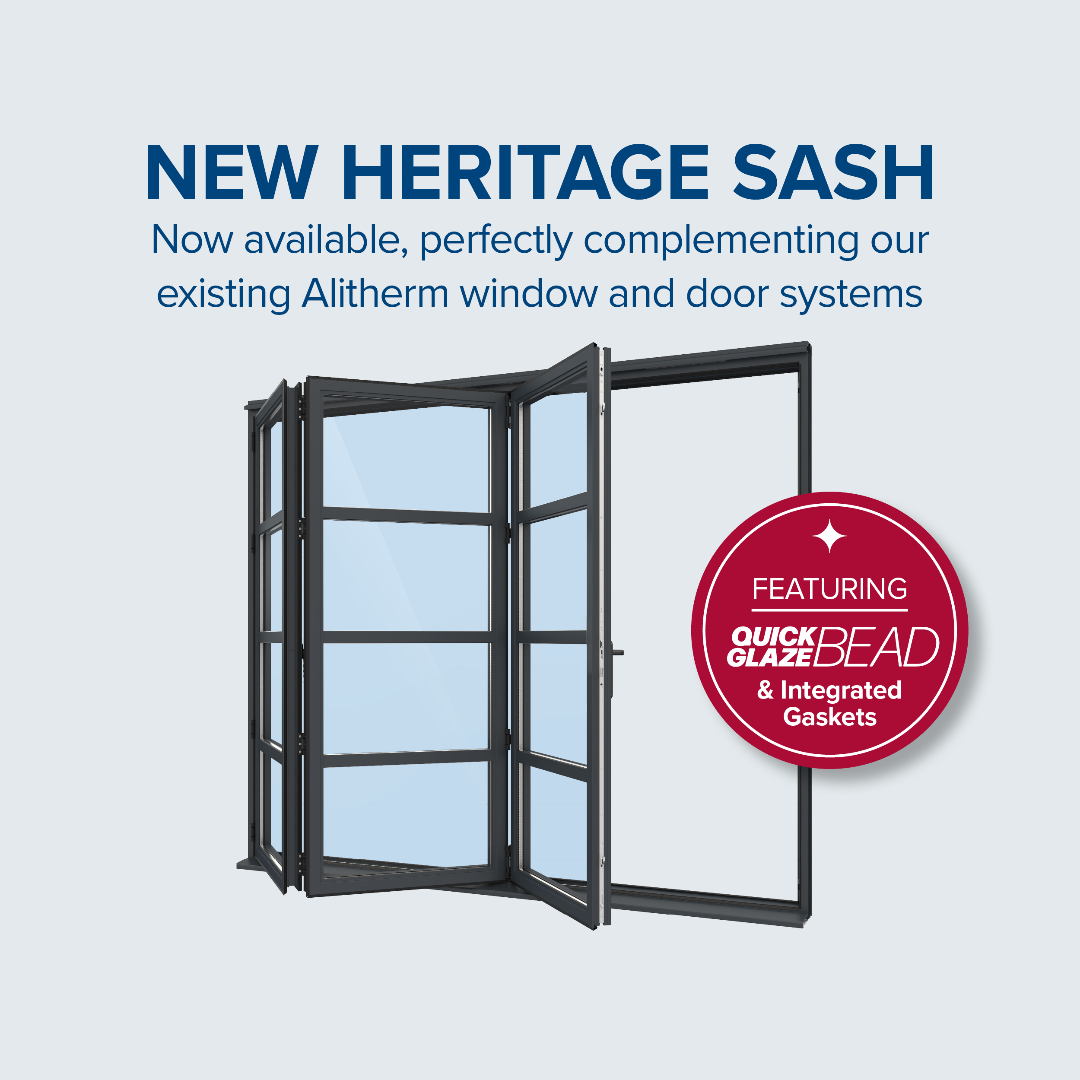

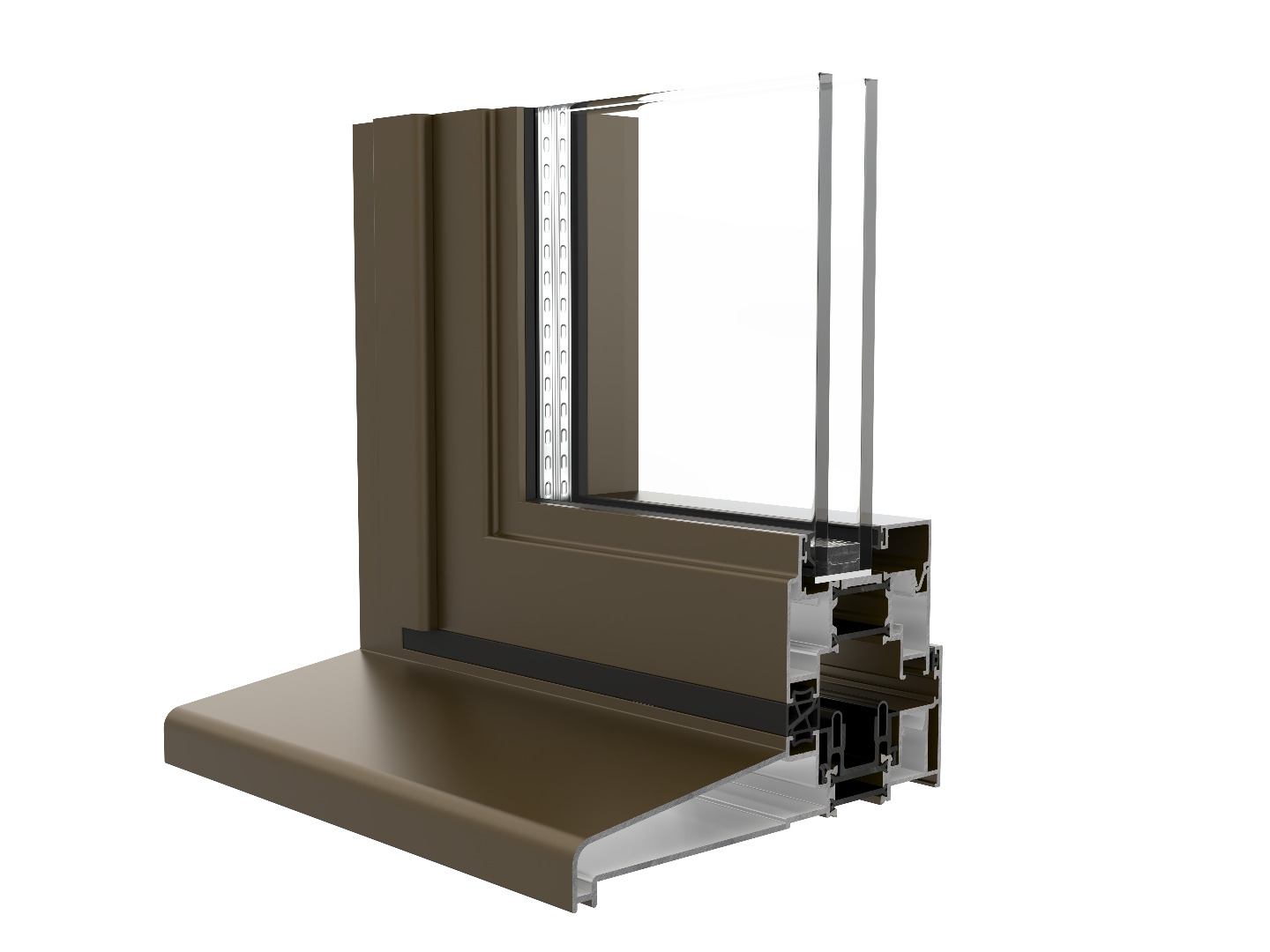

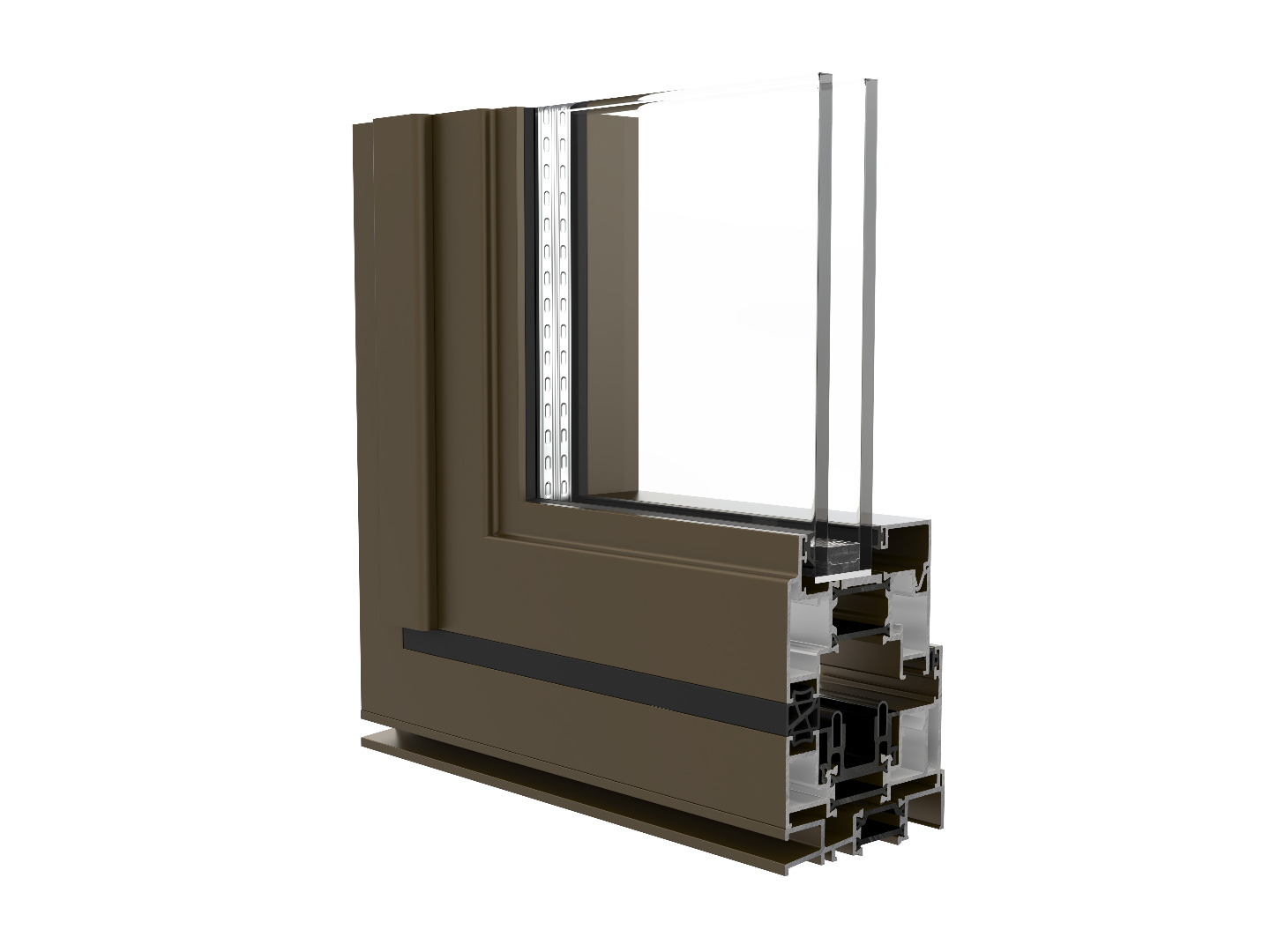

With a choice of two new rebated outer frames (DV17 and DV19N), a new integrated cill, and the existing low threshold option, this latest upgrade also includes the introduction of a DV225 heritage style sash to the range, aligning with Smart’s established range of heritage windows and doors.

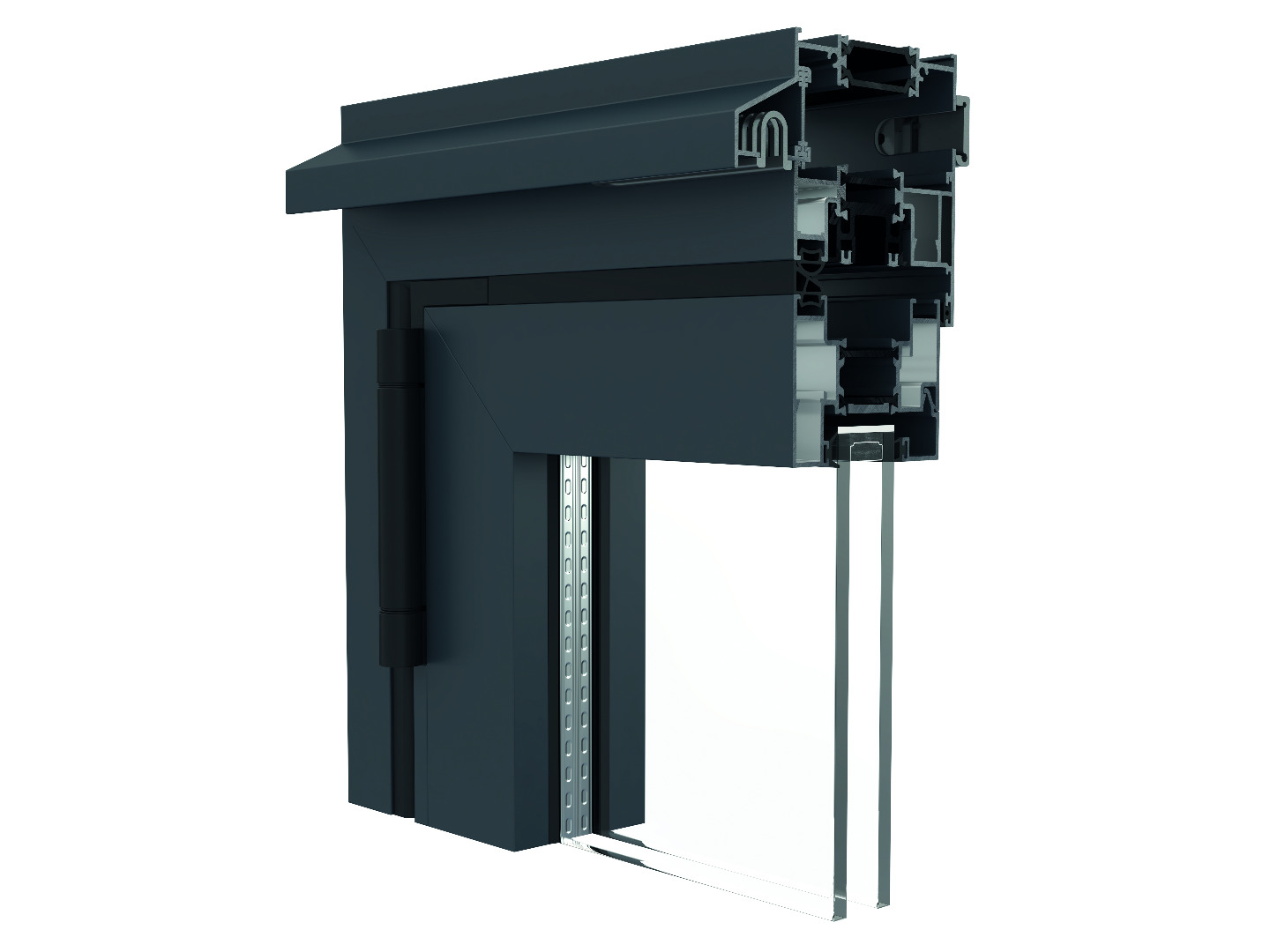

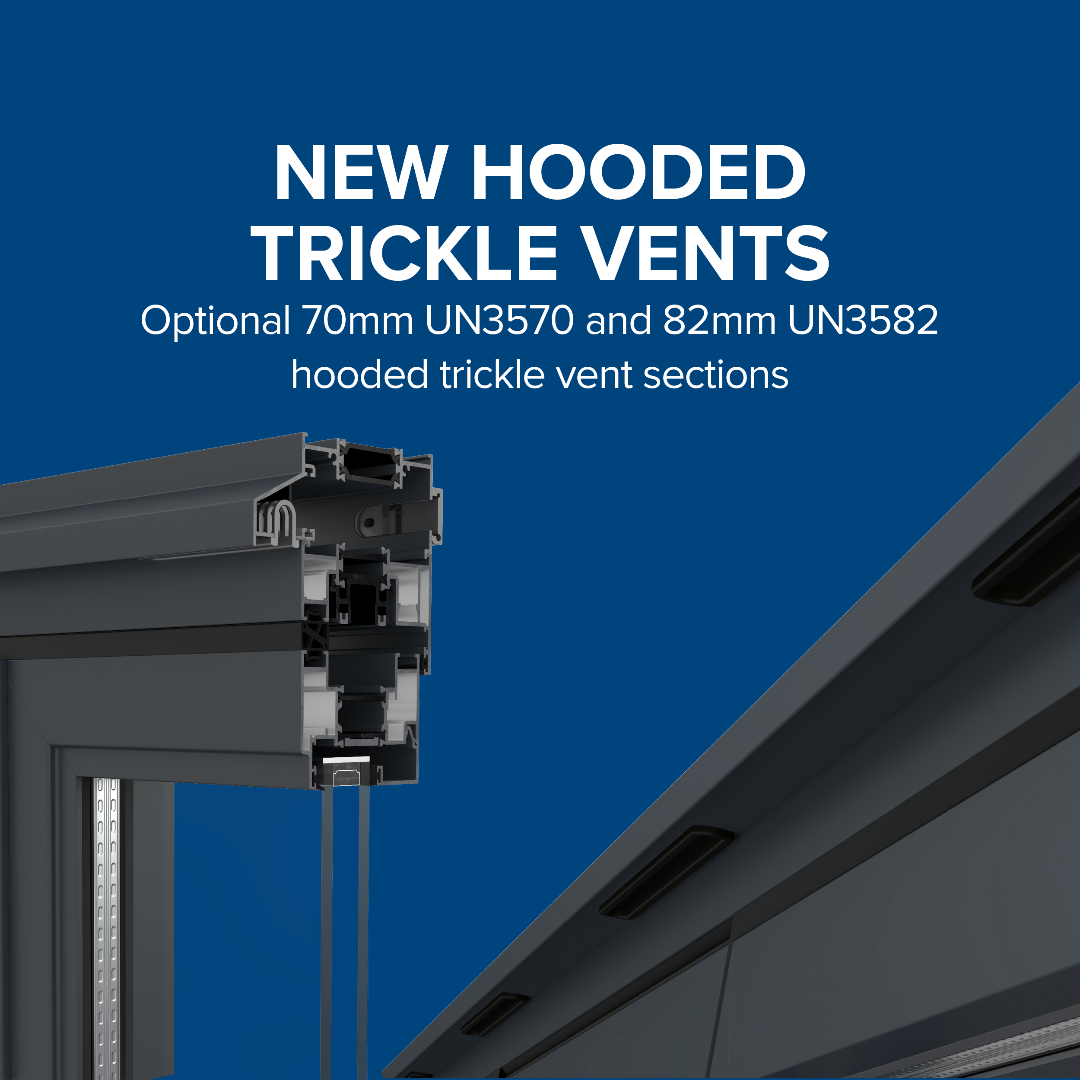

The upgrade also includes optional 70mm UN3570 and 82mm UN3582 hooded trickle vent sections, which provide integrated ventilation.

Accessories and Hardware


As well as improvements to the frames and thermal performance, Visofold 1000’s hardware and accessories range also features a number of significant enhancements, including PAS 24 approval for the door’s standard roller, the addition of new, heavy duty shoot bolt handle and enhancements to the gearboxes.

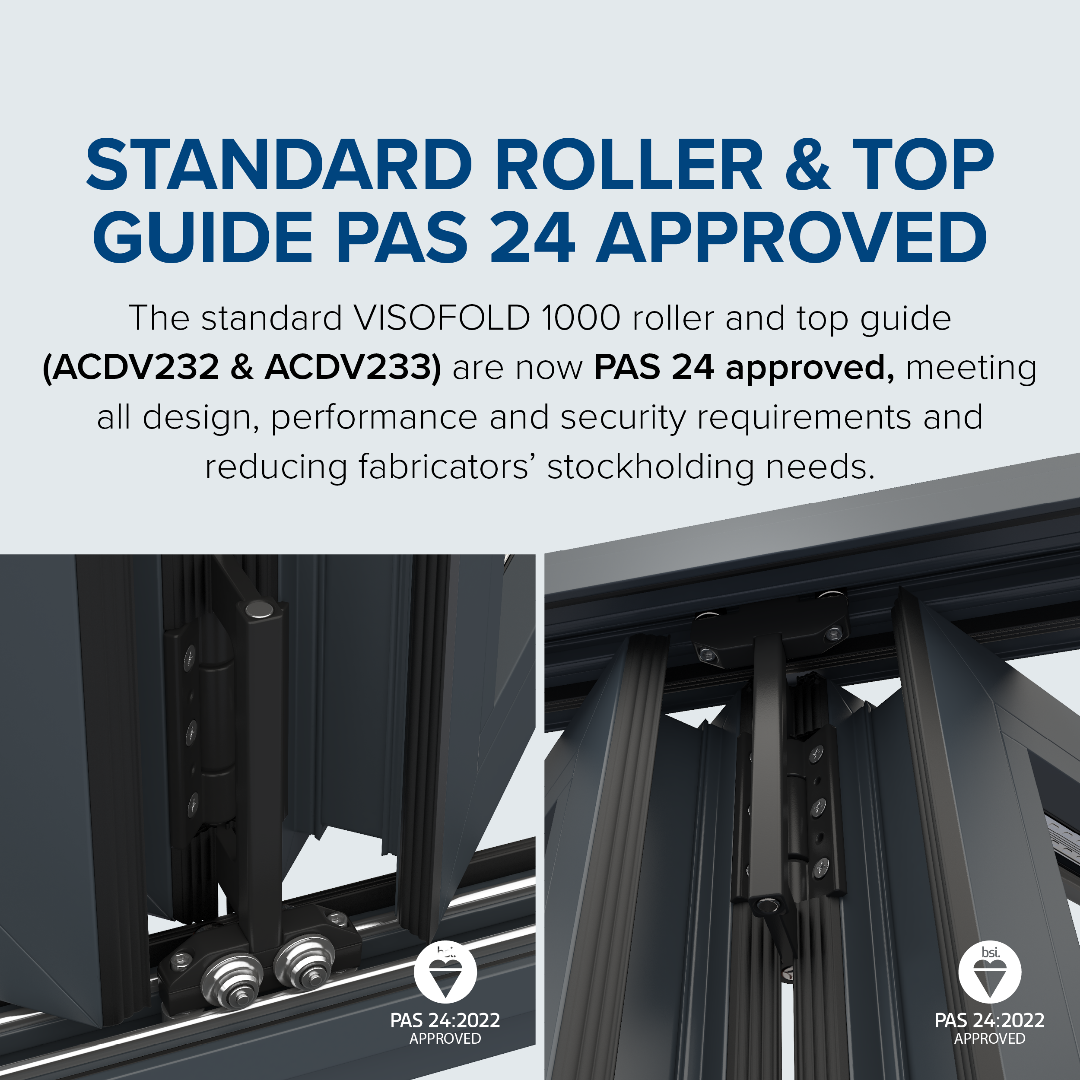

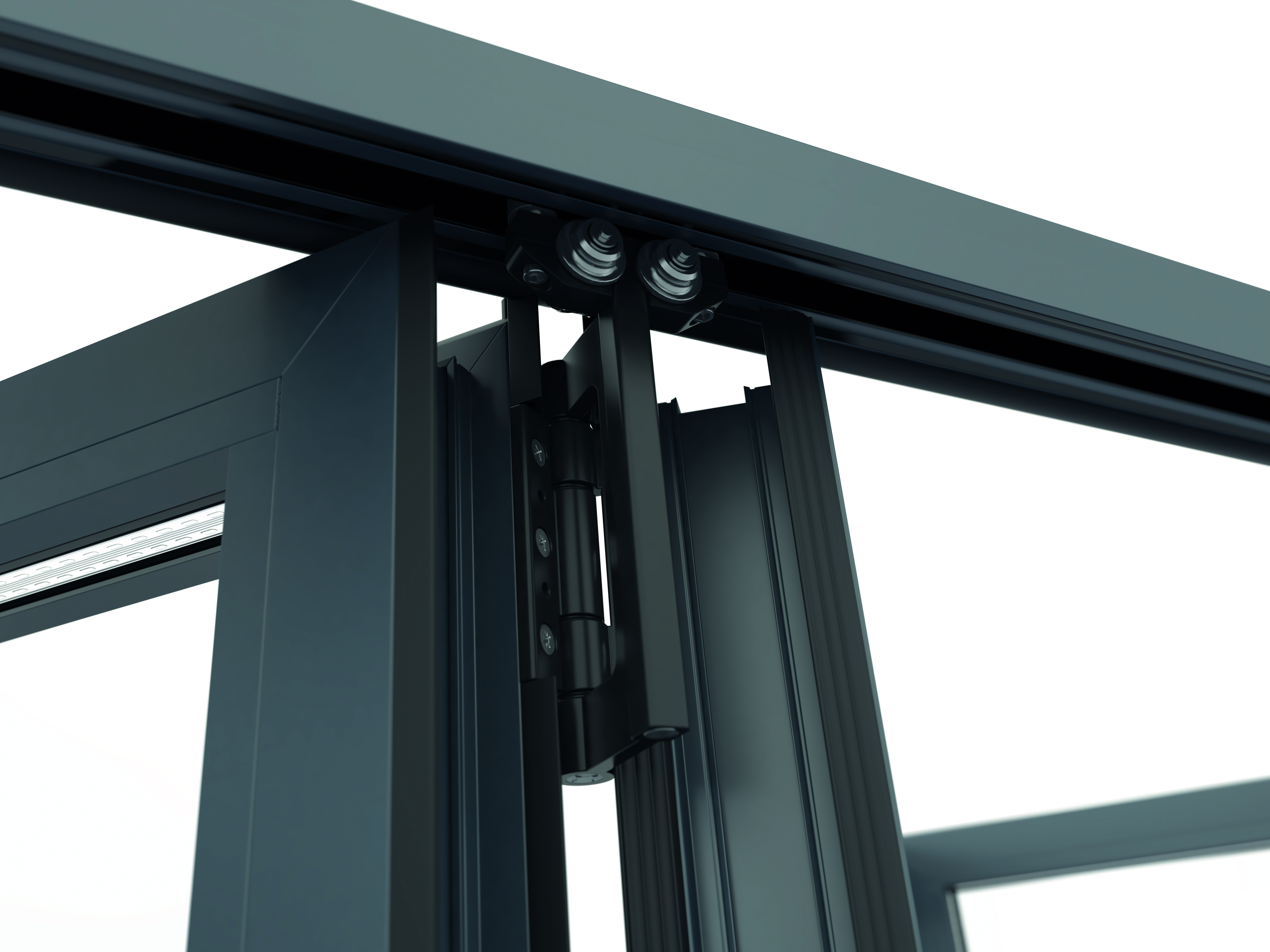

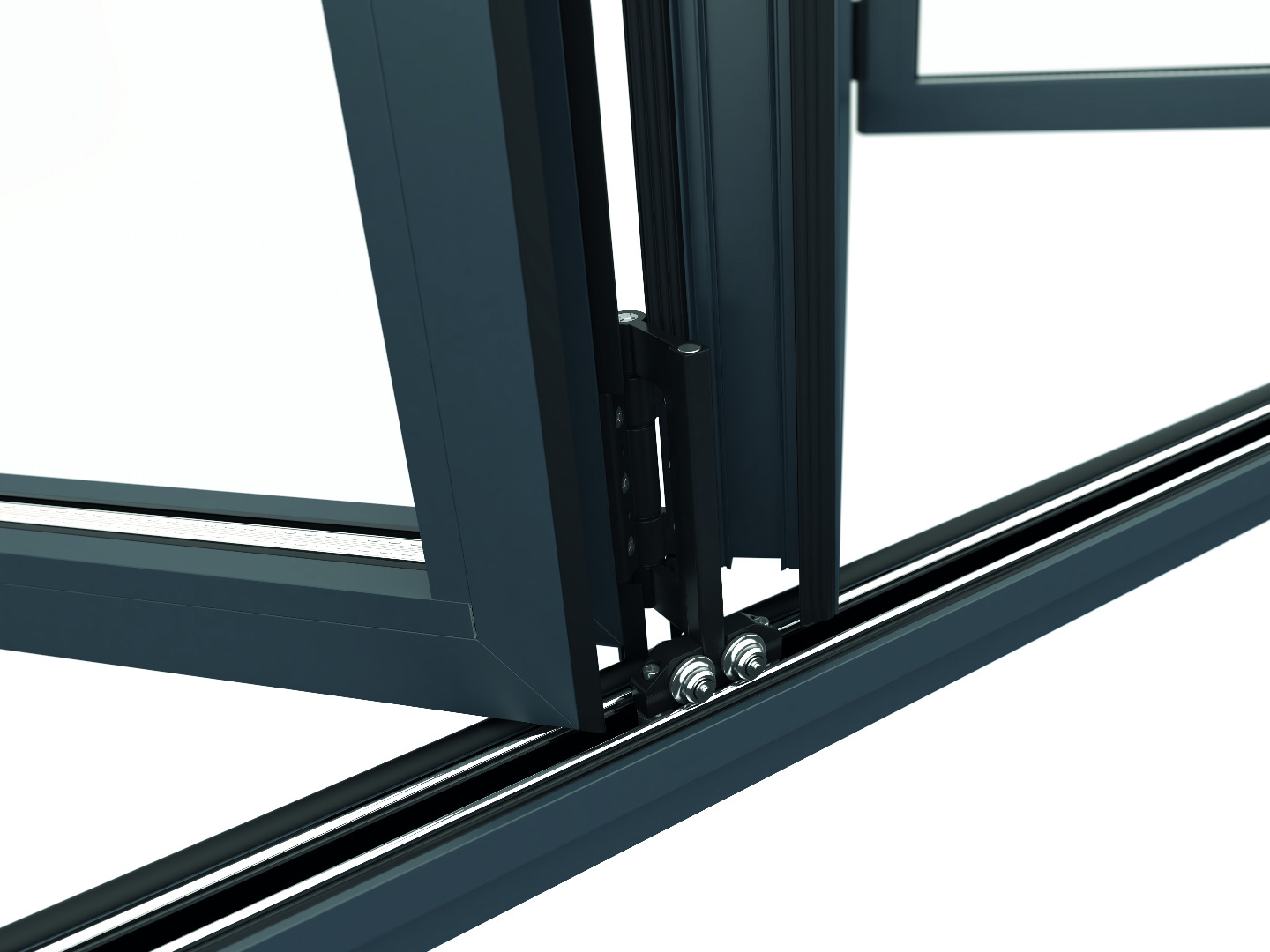

With the ACDV232 standard Visofold 1000 roller now being PAS 24 approved, it meets all design, performance and security requirements and so will reduce fabricators’ stockholding needs.

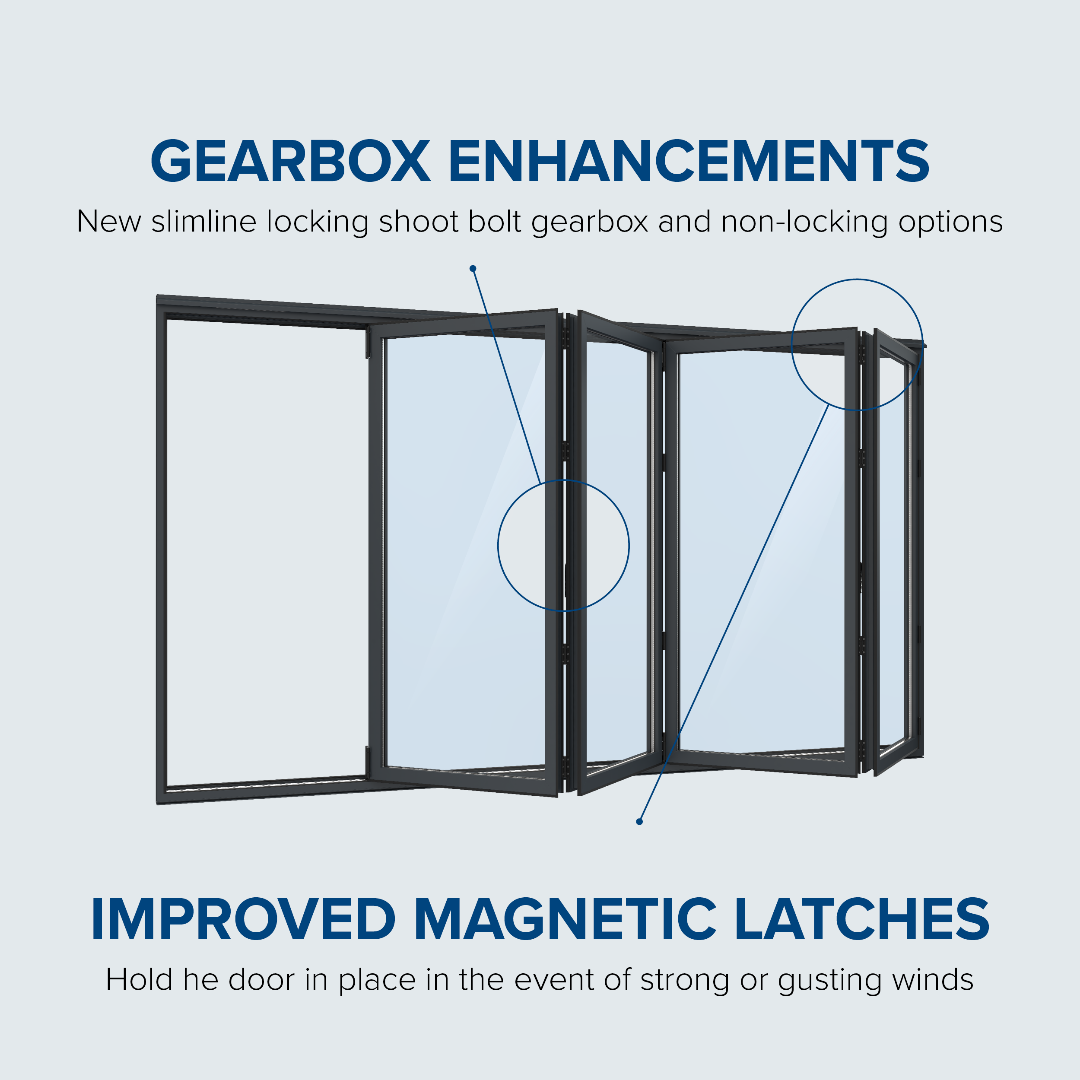

The system also now features a new slimline locking shoot bolt gearbox (ACDV427), and non-non-locking options (ACDV627). These systems replace Smart’s ACDV227 and ACDV927 gearboxes.

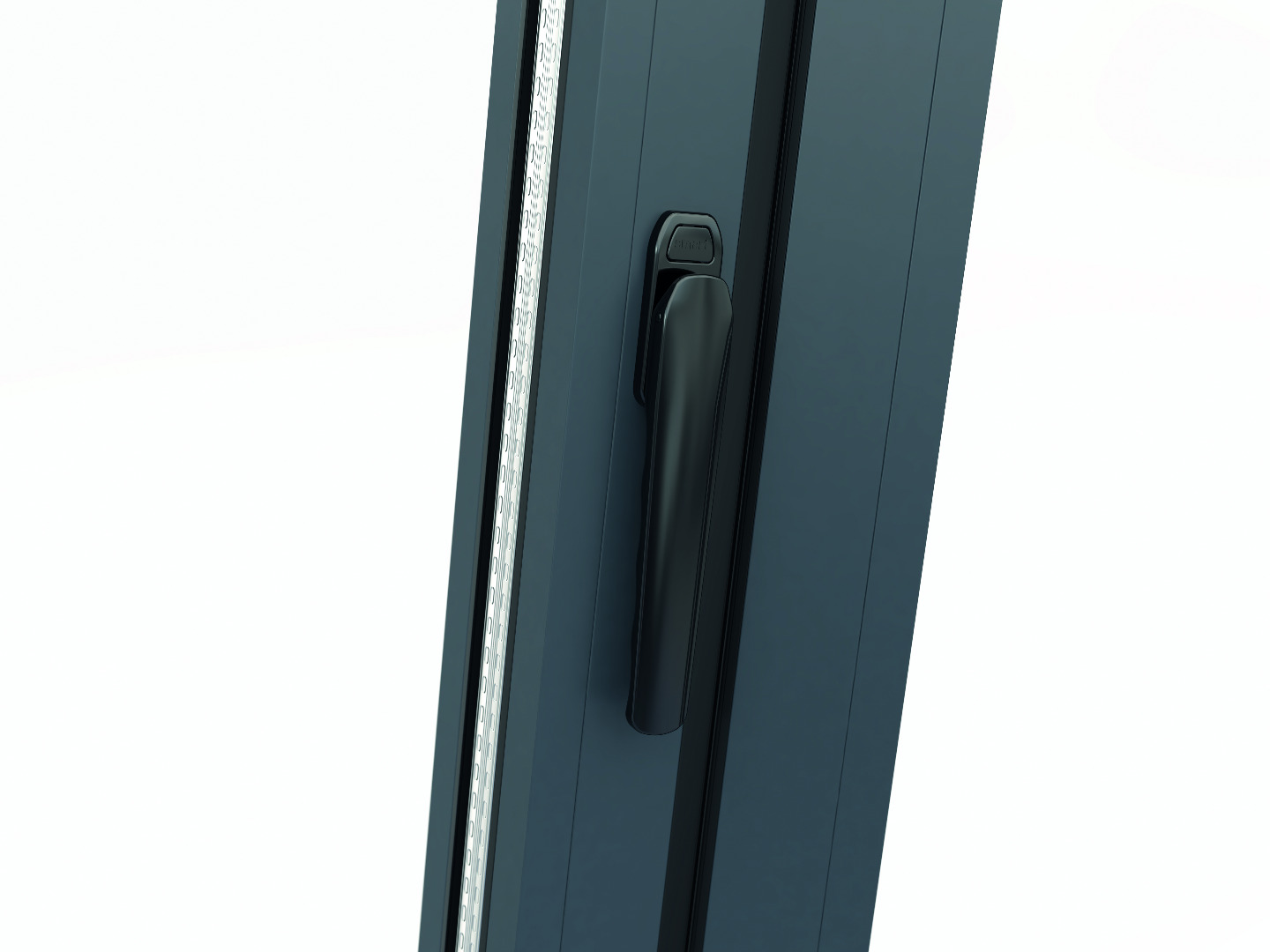

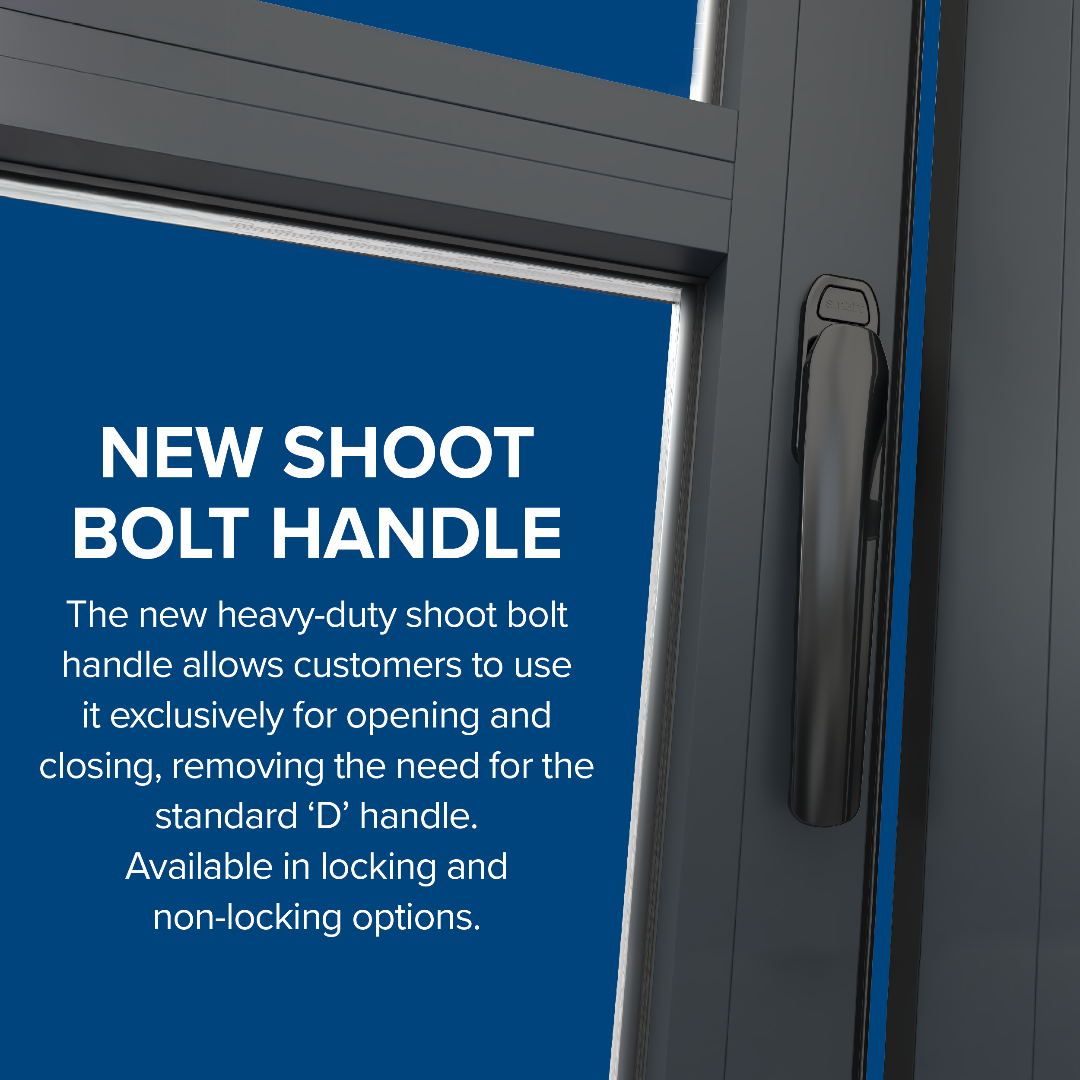

The new heavy duty shoot bolt handle (ACDV425 and ACDV426) gives customers the option of removing the standard ‘D’ handle, and so only using the shoot bolt handle for opening and closing the bi-fold doors.

ACDV306 improved magnetic latches are fitted to the sashes to better hold the door in place in the event of strong or gusting winds

BrandVisofold
MaterialAluminium Polyamide
Dual ColourYes
Thermally BrokenYes
NBS AvailableYes
U Value1.4W/m²K using 1.0 W/m²K centre pane & foam insulation
Document L CompliantYes
KitemarkYes
Slide Folding Door Max Width (mm)1200mm (per sash)
Slide Folding Door Max Height (mm)2500mm (per sash)
Glazing (mm)24mm, 28mm, 34mm, 36mm & 38mm
Frame Depth (mm)70mm - 82mm
Typical Sightlines (mm)122mm
