Product information

Visoglide Plus offers the same contemporary styling and robust performance associated with the system whilst delivering superior thermal performance.

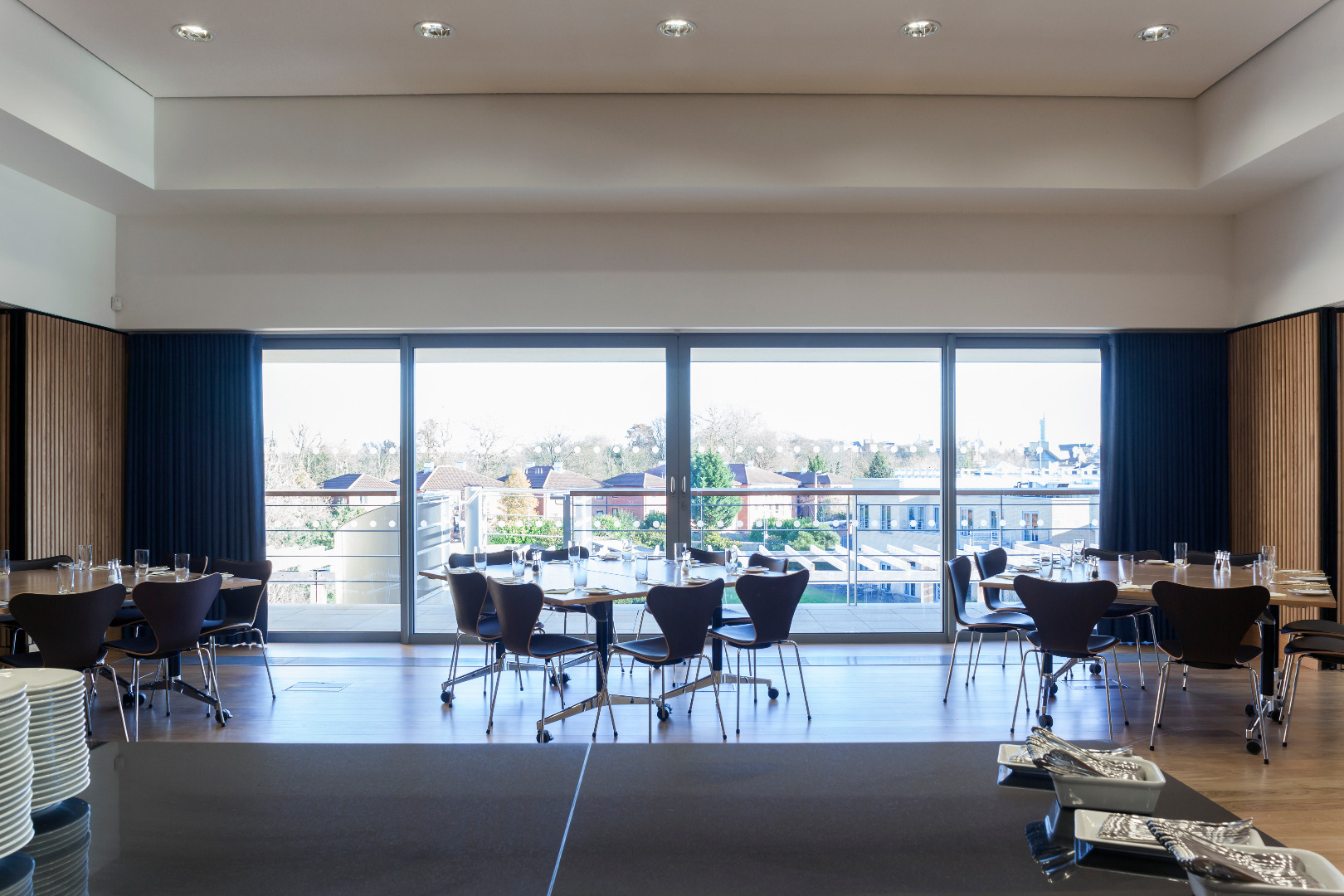

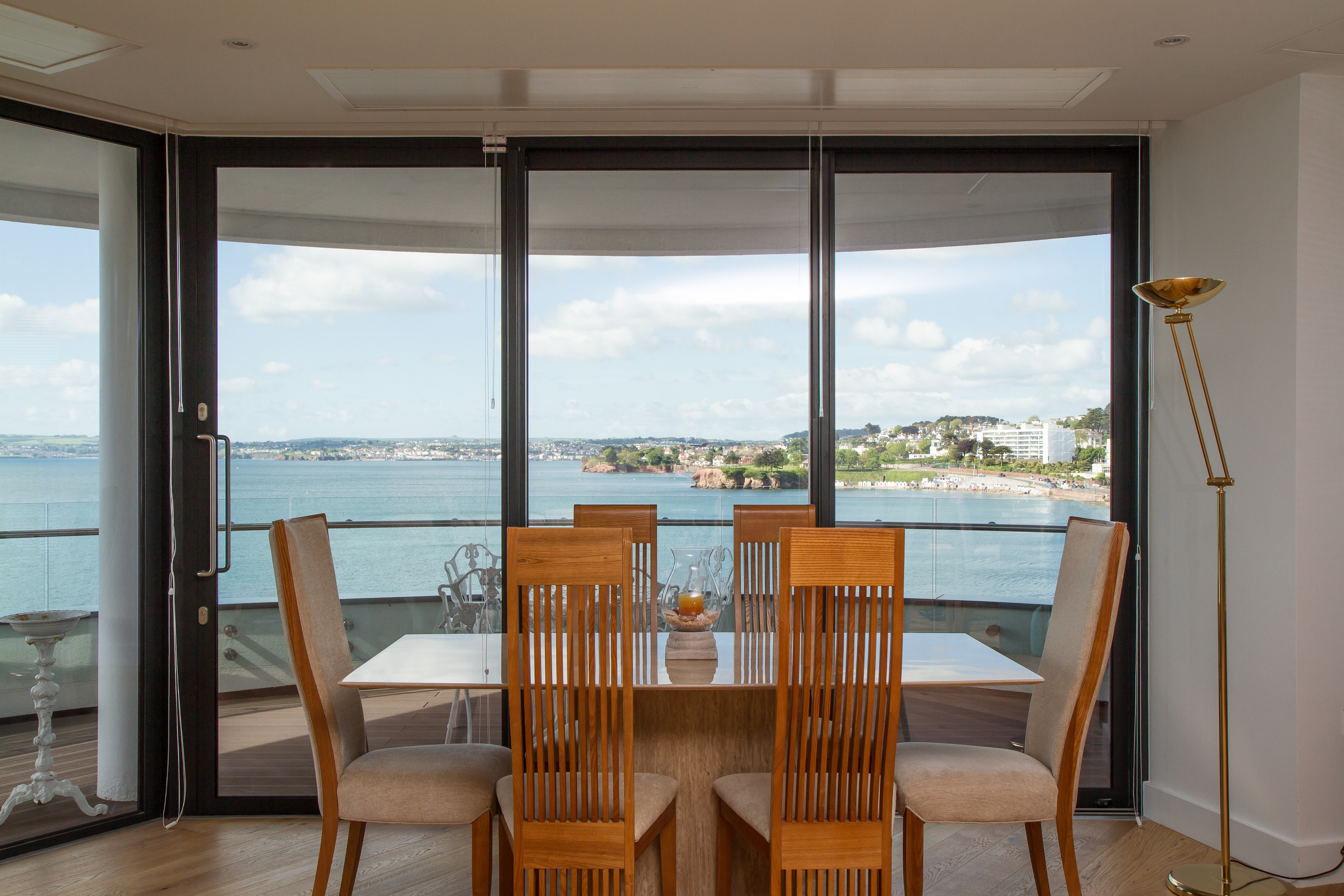

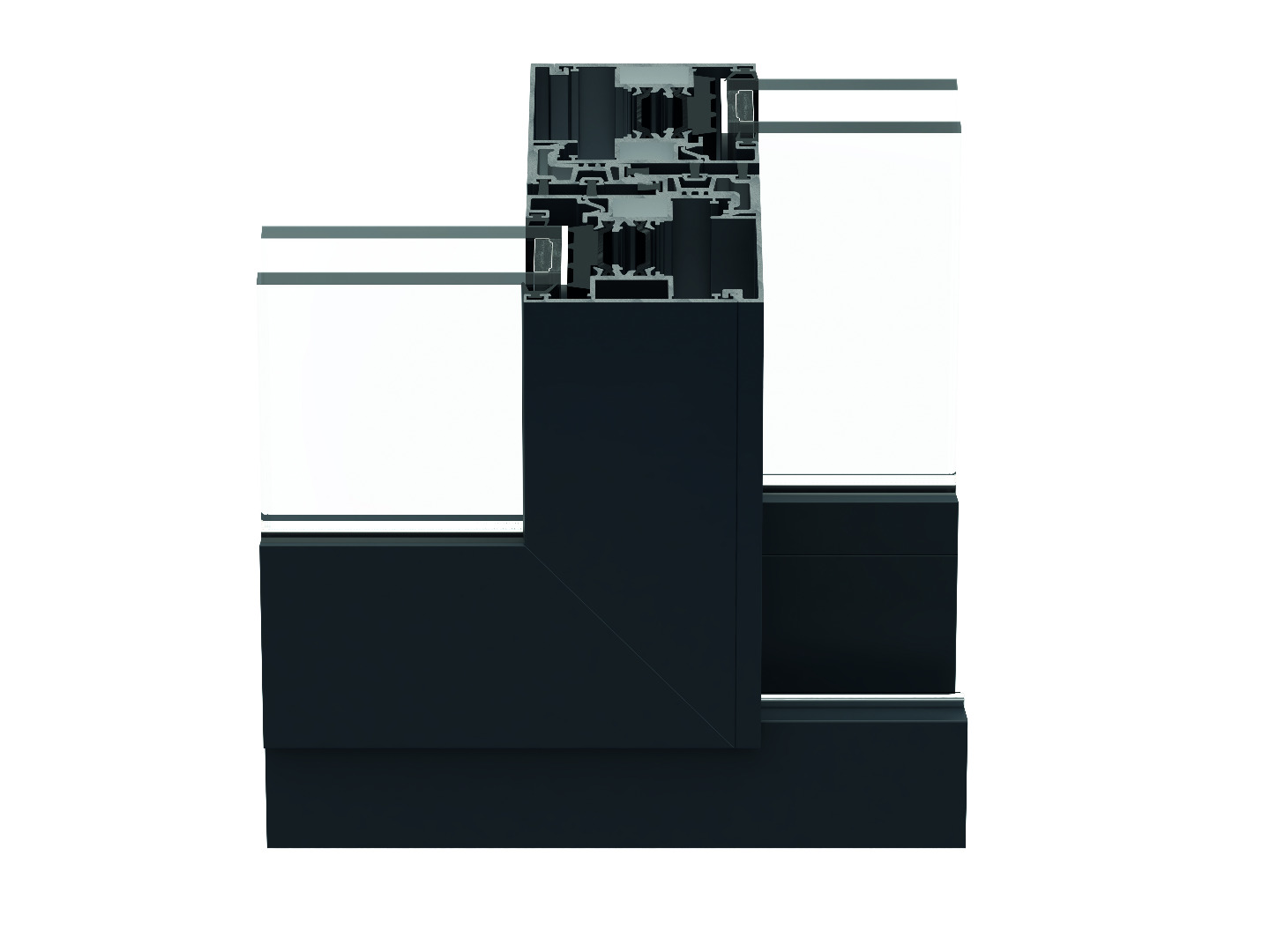

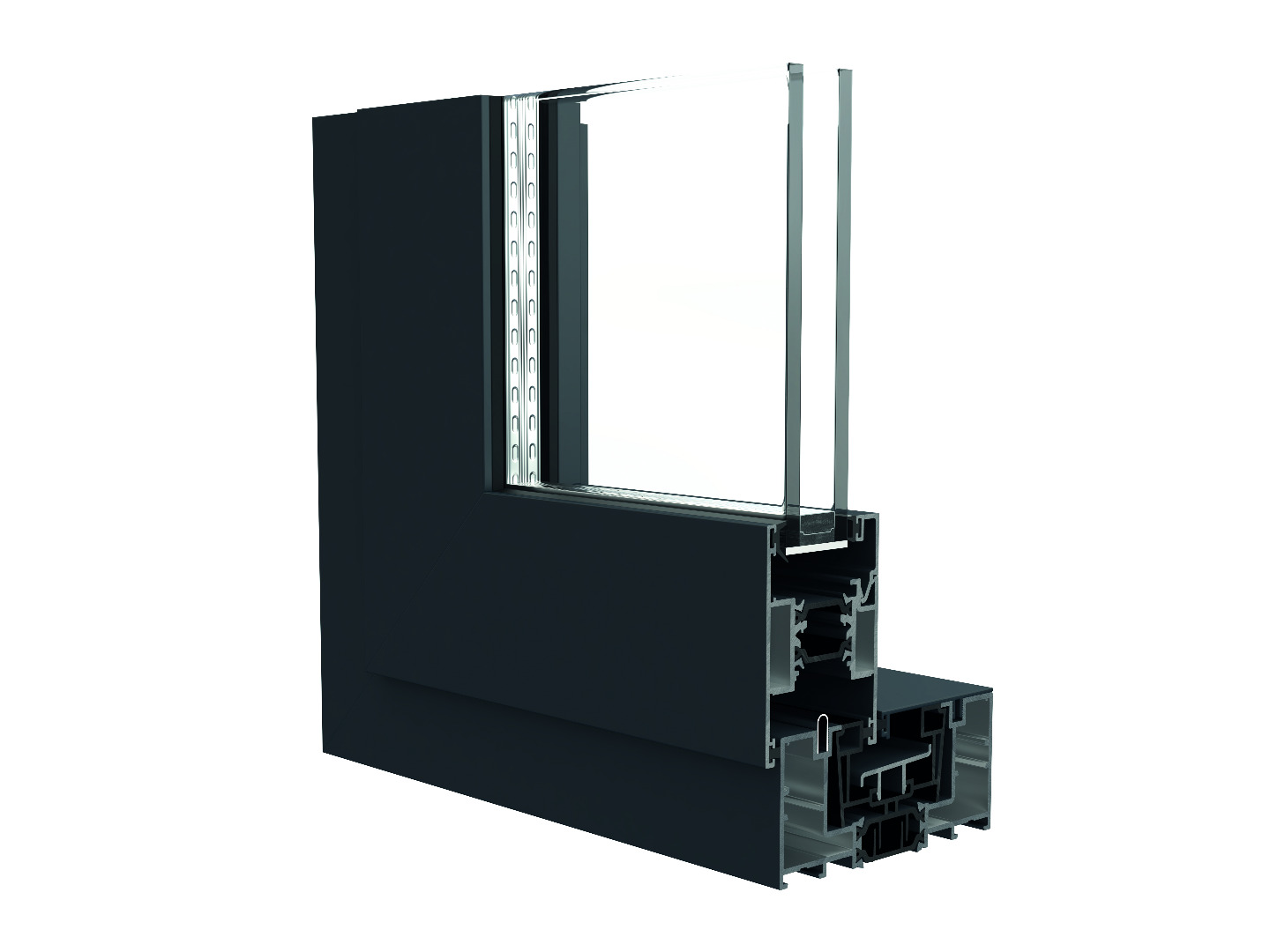

This adaptable system is suitable for use as either sliding commercial entrances where large opening apertures are required, or as dynamic residential sliding doors that maximise light and give stunning unimpeded views. Visoglide Plus profiles have been designed to improve both strength and weather resistance. All main sections feature an extended polyamide thermal break that allows Visoglide Plus to achieve a U Value of 1.6 W/m²K when installed with a suitable sealed unit.

Visoglide Plus doors are available in both single and dual colour in wide choice of standard and non-standard finishes including Smart’s unique Sensations range of textured colours. The system is also suitable for use with auto slide opening mechanisms (sold seperately).

  • Inline sliding or lift & slide options
  • Slim interlock option
  • Colour matched accessories now available speak with your supplier for details
  • British Standard Kitemarked system achieving: KM 530838 PAS 24:2012
BrandVisoglide
MaterialAluminium Polyamide
Dual ColourYes
Thermally BrokenYes
NBS AvailableYes
U Value1.6 W/m²K based on using a sealed unit with 1.0 W/m²K centre pane
AirClass 3, 600Pa
WaterClass 7a, 300Pa
WindClass AE, 2400Pa
Document L CompliantYes
KitemarkYes
BS 6375-1:2009Yes
Sliding Door Max Width (mm)Within height & weight limitations
Sliding Door Max Height (mm)2500mm (Sash)
Sliding Door Max Weight (kg)250kg
Glazing (mm)38mm double or triple glazed units
Frame Depth (mm)100mm
Typical Sightlines (mm)117mm (OF) 83mm (Interlock)
