Product information

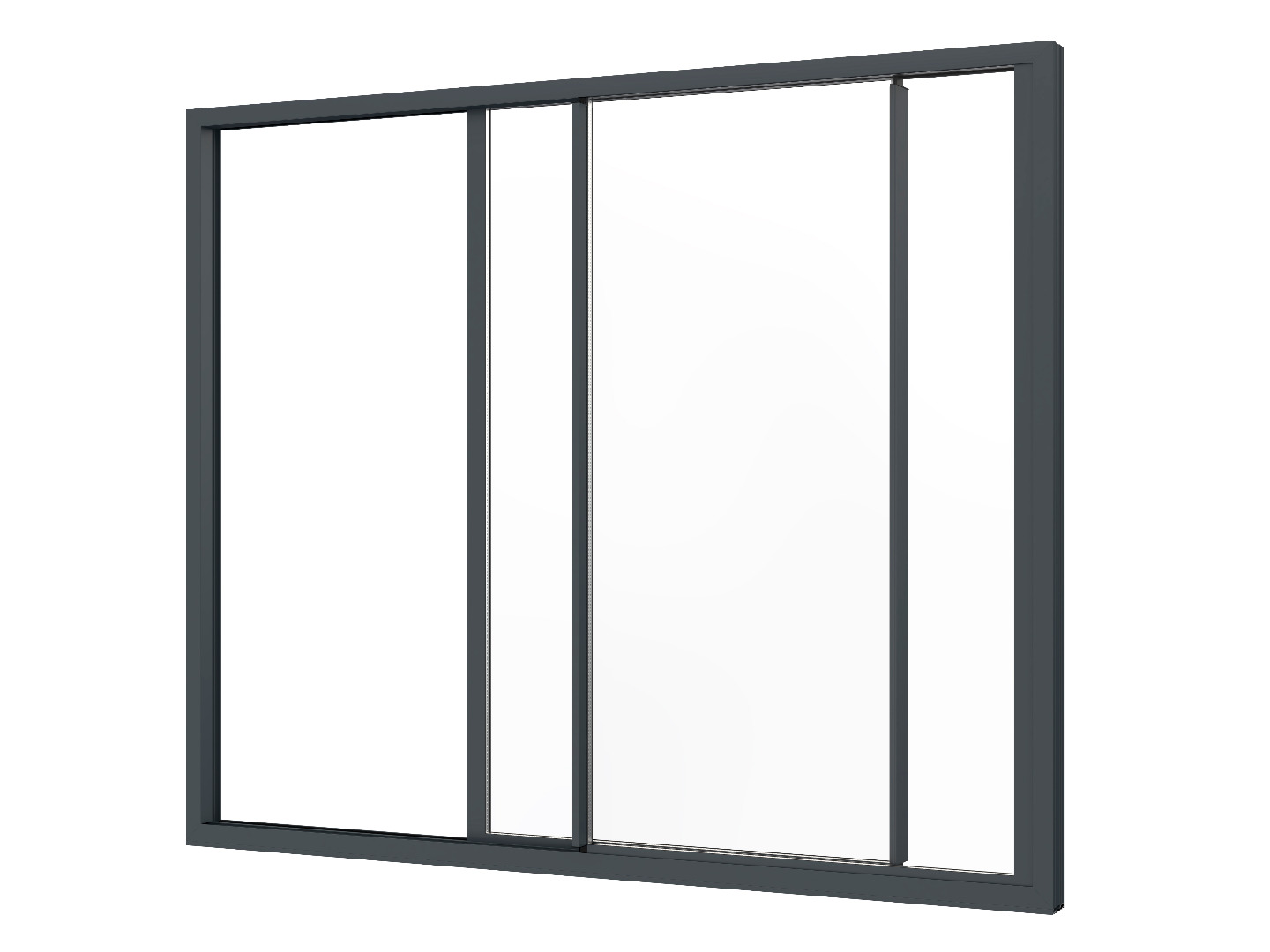

Building on the proven success of the established Visoglide system, we are now introducing the new INVISOGLIDE DOOR, bringing even slimmer sight lines and elegant aesthetics to the range.

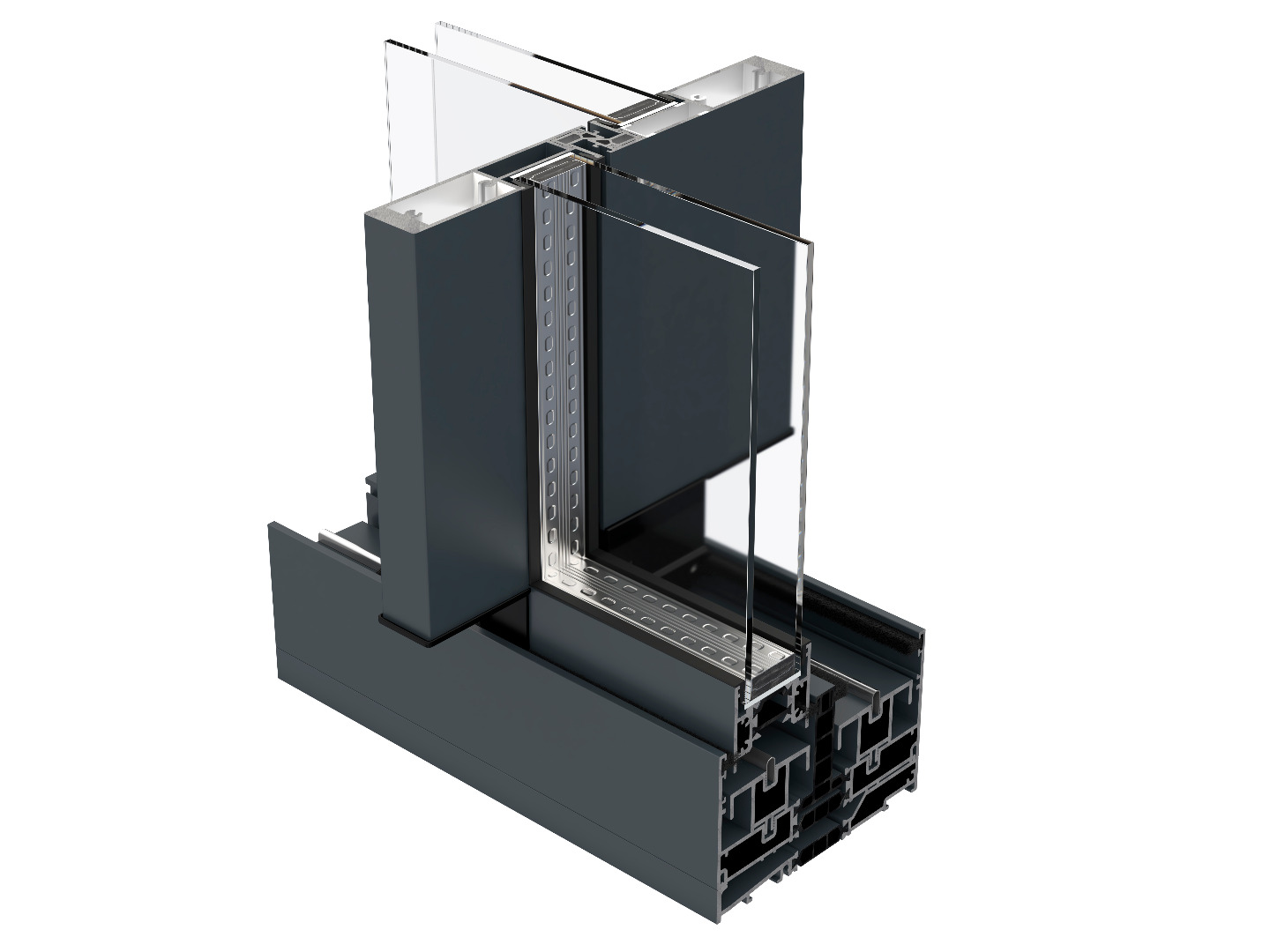

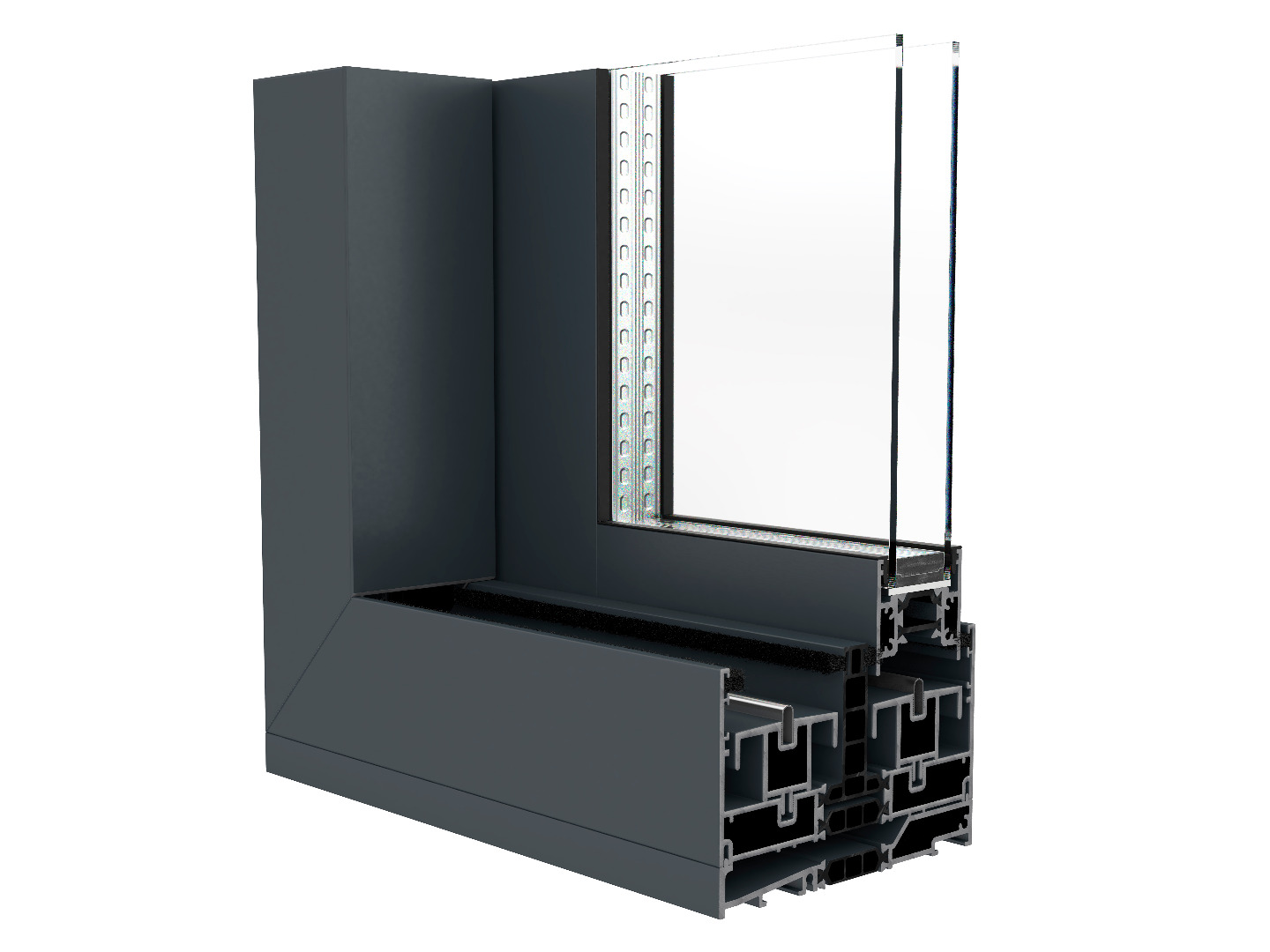

Featuring a new bonded glazing system, INVISOGLIDE provides enhanced security and extremely slim profiles. The sliding sashes are bonded using a high-quality single-component adhesive.

Providing enhanced security, the bonding process also enables slim profiles to be used, with 20mm and 26mm interlock options. It also means that the outer frame can be concealed into the aperture.

  • Featuring Sliding Sashes Bonded Glazing: A high-quality single-component adhesive allows sliding sashes with elegant slim sight-lines.
  • Slim Interlock Options: 20mm and 26mm
  • Outer Frame can be concealed in aperture
Max HeightMax WidthMax Sash WeightGlassInterlock OptionsTypical U ValueDSER
2500mm (per sash)No max width250kg32mm (bonded)20mm or 26mm1.4w/m2K (1.0 centre pane)A Rating

BrandVisoglide Plus
MaterialAluminium Polyamide
Dual ColourYes
Thermally BrokenYes
NBS AvailableYes
U Value1.4W/m2K
Document L CompliantYes
Sliding Door Max Height (mm)2500
Sliding Door Max Weight (kg)250
Glazing (mm)32
