Product information
DISCOVER...
SMART A2 INSULATION PANELS

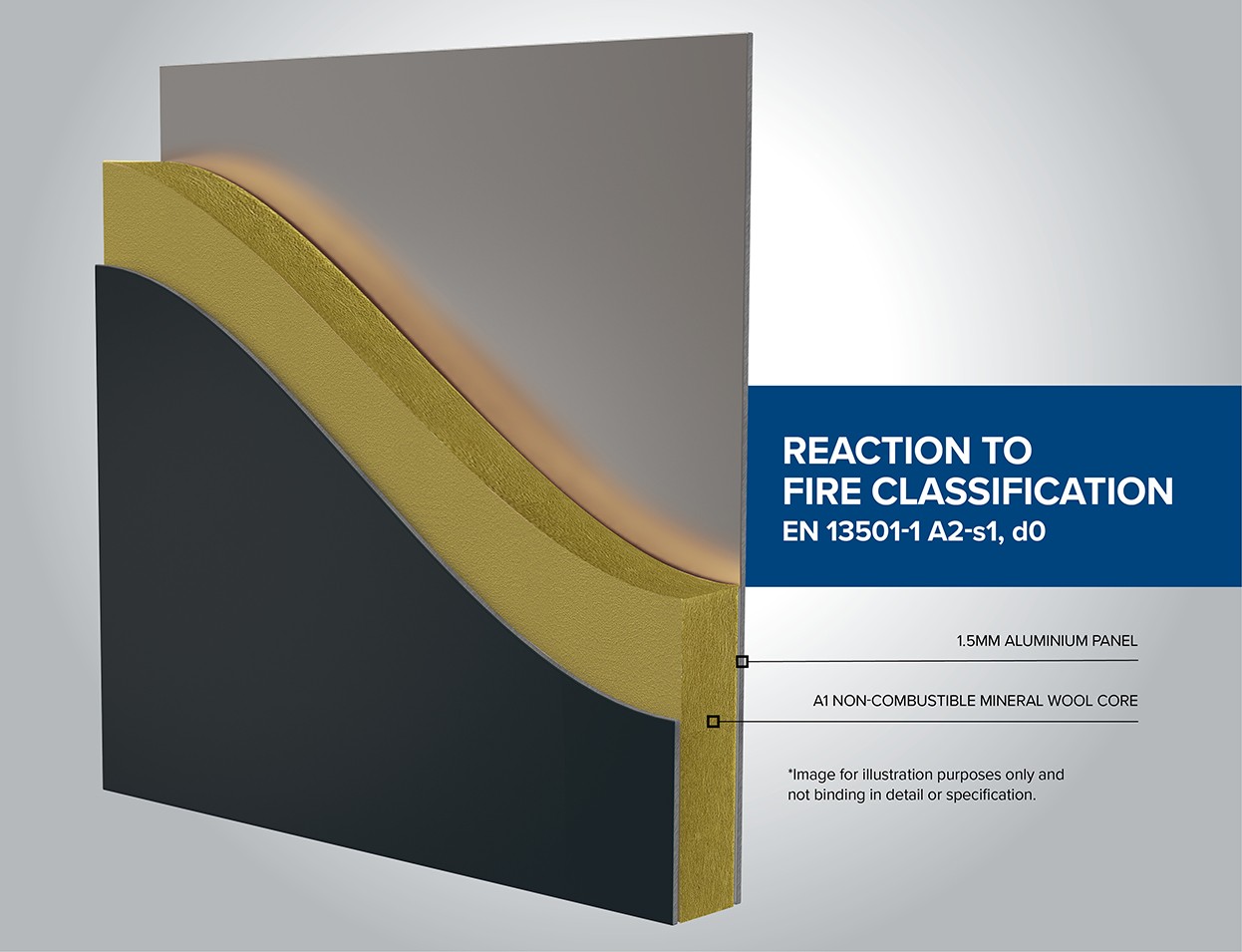

The complete panel system is classified as Euroclass A2-s1, d0 and comprises two polyester powder-coated aluminium facings bonded to a non-combustible Euroclass A1 insulation core. The system’s performance has been independently verified to BS EN 13501-1:2018 by the Building Research Establishment (BRE) and is documented in BRE Test Report P130557-1002-1.
TECHNICAL SPECIFICATION
| Panel Thickness | 28mm overall panel thickness |
| Panel Skins | 1.5mm aluminium panel |
| Insulation Core | 25mm, 164kg/m3 lamella, A1 non-combustible mineral wool core |
| Surface Finish | A2-s1, d0 panels are available in Smart's Naturals (KL) matt finish colours only. Textured finishes are excluded. |
| Reaction to fire (combustibility) | EN 13501-1 Classification A2-s1, d0 |
| BRE | Test Report P130557-1002-1 |
| Fire Resistance | Not fire resistance rated |
DESIGN LIMITATIONS
| Panel Sizes | Full Size (1200mm x 2400mm) |
| Half Size (1200mm x 1195mm) | |
| Cut-to-size options available | |
| Panel Use | Designed for use in applications that require A2-s1, d0 classified aluminium panels. |
VISIT THE DOCUMENT LIBRARY FOR THE FOLLOWING DOCUMENT DOWNLOADS:
- Smart A2 Insulation Panels Data Sheet
