Product information

A range of high-performance, high quality doors has been added to the established EcoFutural range of commercial windows, with single and double doors now complementing the tilt and turn, pivot, fixed and open-out casement window options.

All EcoFutural profiles utilise Smart’s chambered polyamide thermal break technology which creates a barrier between the cold air outside and the warm air inside. This technology significantly reduces thermal transmittance and enhances the overall U Value of a product.

EcoFutural products are available in a choice of standard or non-standard colours, including metallic, dual colour, Smart’s textured Sensations & Cotswold ranges and Alchemy anodised effect finishes.

EcoFutural Window: Design Limitations and Performance

  • Profiles feature an extended polyamide thermal break to enhance thermal performance

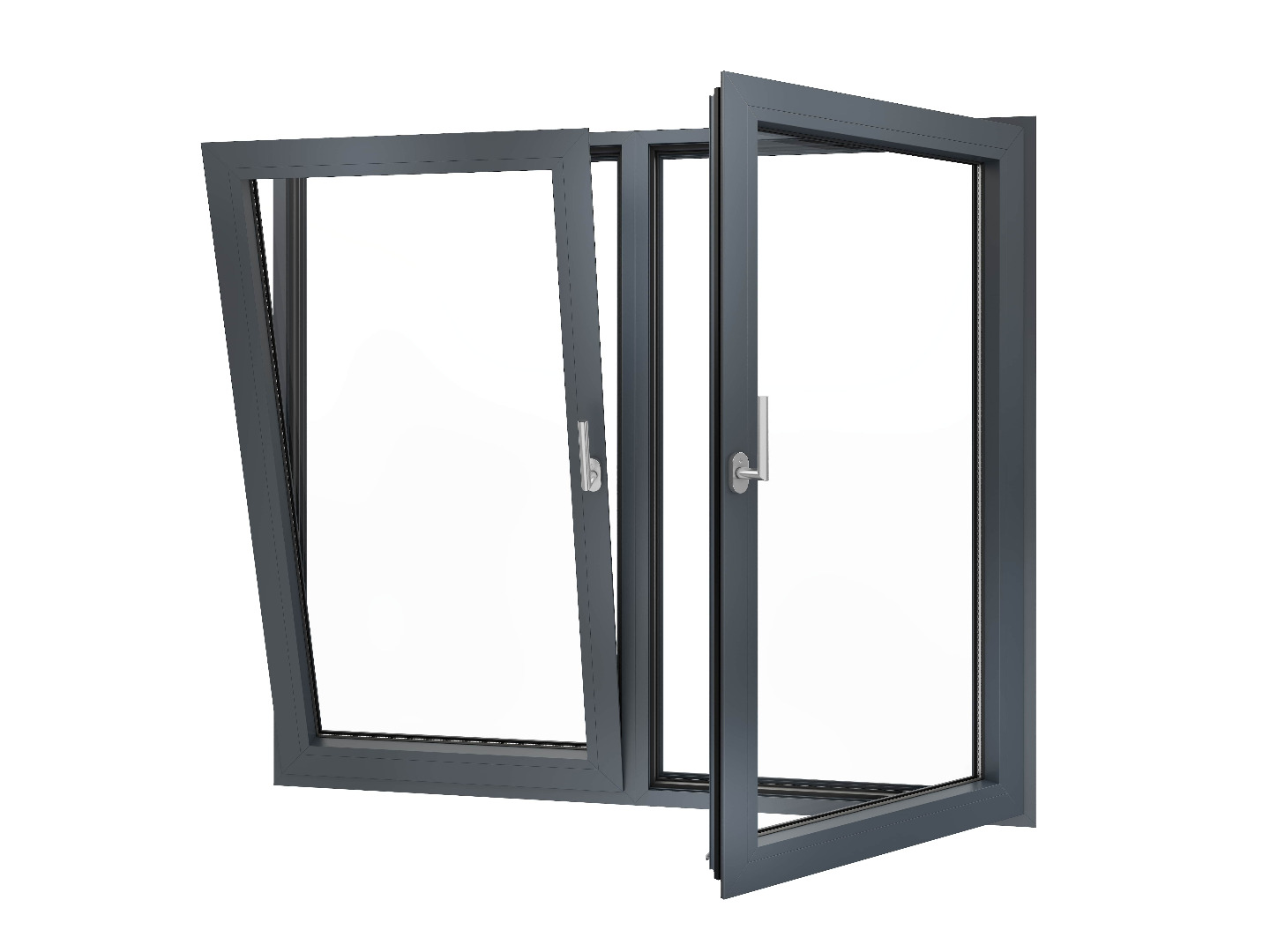

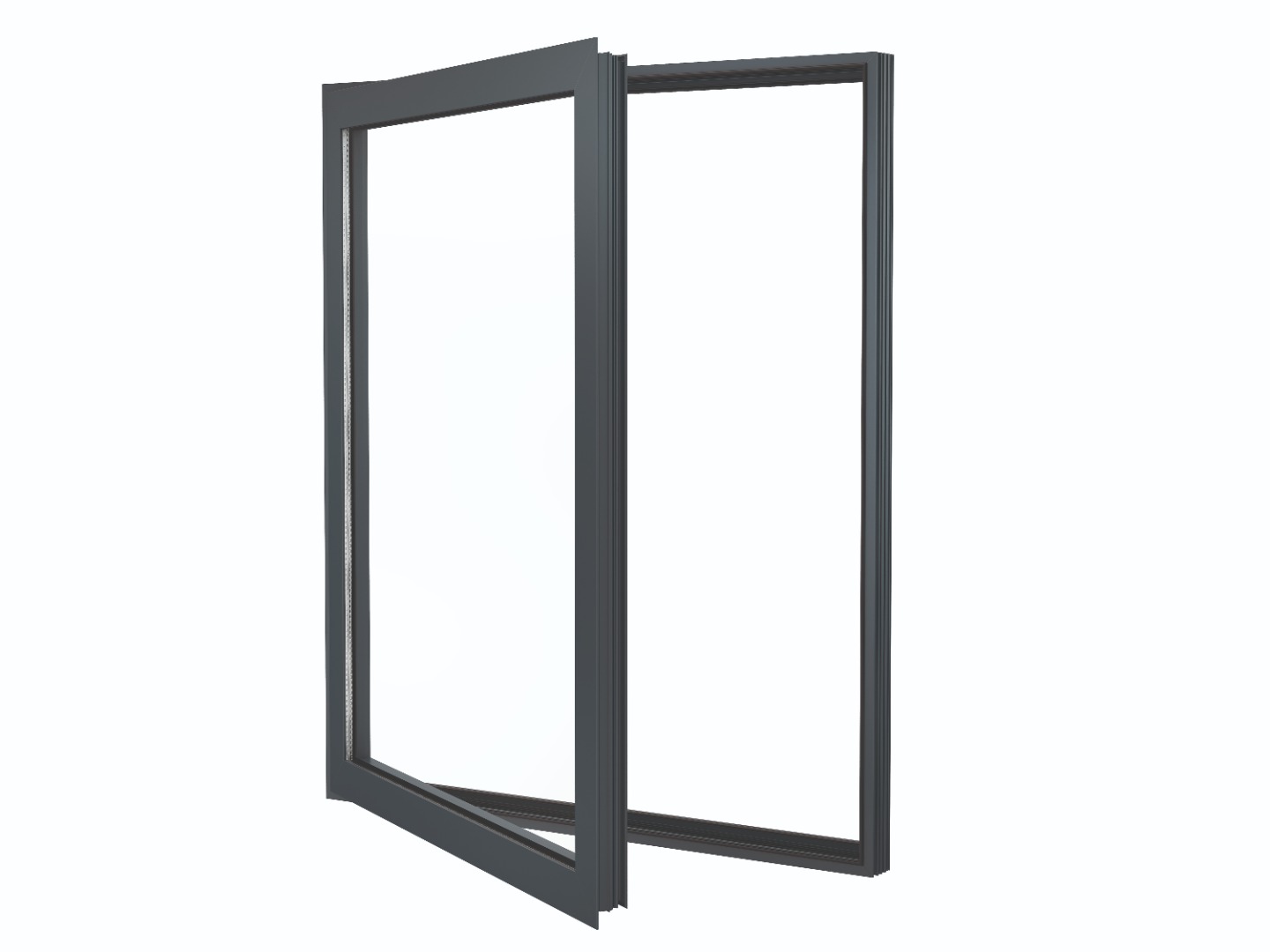

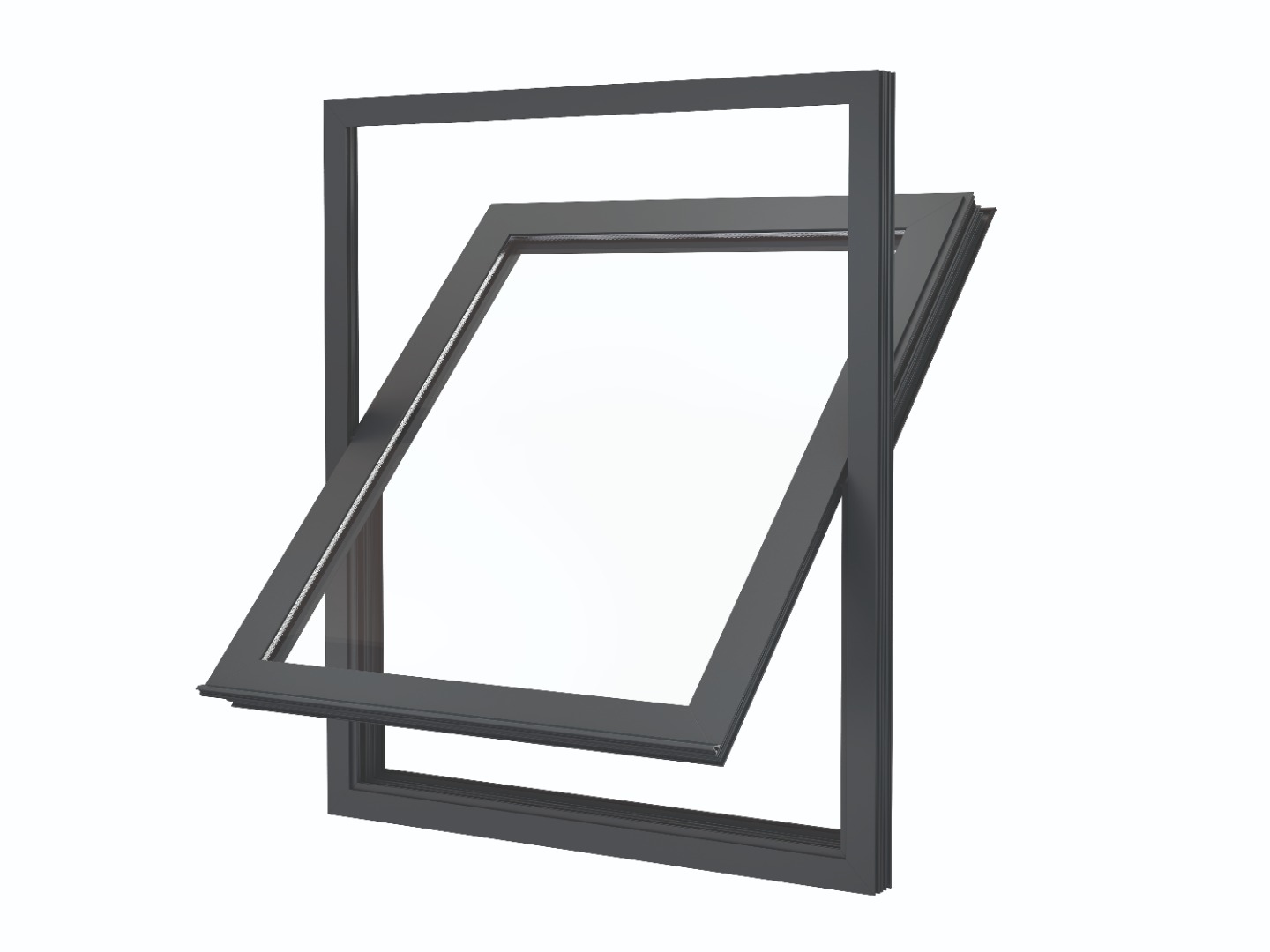

  • Windows suitable for open in, tilt turn, bottom or side hung casements, pivot, fixed and open out casement windows
  • 316 Marine Grade Stainless Steel Hardware option
  • Fabrication is by method of pneumatically crimped corners
  • Fully concealed hinges available
  • Weather tested to BS 6375 Part 1:2009
  • Security tested to PAS 24:2016
  • British Standard Kitemark KM 81543
  • British Standard Kitemark KM 81580
Window TypeMax Length (mm)Max Height (mm)Max Perimeter (mm)Transom/Mullion Len (mm) inc Frame MaxAir Permeability ClassificationWatertightness ClassificationResistance to WindExposure Cat. as given in Table 1 of BS 6375-1:2009
Projecting Top Hung14402500--38AA52000
Projecting Side Hung8401440--4E1050AE24002000+
Fixed210021004800-4E1050AE2000
Tilt/Turn1600*2400--4E900AE2400
Multi-light24002100768013454E1050AE2000

*Width of the tilt/turn sash must not exceed 1 1/2 times the height.

EcoFutural Door: Design Limitations and Performance

  • Profiles feature a chambered polyamide thermal break to enhance thermal performance
  • Door range includes single and double doors with open-out, open-in, standard and low threshold options
  • 316 Marine Grade Stainless Steel Hardware option
  • Fabrication is by method of pneumatically crimped corners
  • Weather tested to BS 6375 Part 1:2009
  • Security tested to PAS 24:2016
  • British Standard Kitemark KM 530838
Door TypeMax Leaf Width (mm)Max Leaf Height (mm)Air Permeability ClassificationWatertightness ClassificationResistance to WindExposure Cat. as given in Table 1 of BS 6375-1:2009
Single Leaf1000250044AA31000
Double leaf open in low threshold 1000250034AA31000
Double leaf open in standard threshold1000250046AA31000
Double leaf open out 1000250048AA31000
BrandEcoFutural
MaterialAluminium Polyamide
Dual ColourYes
Thermally BrokenYes
NBS AvailableYes
WER RatingA
U Value1.4 W/m²K (centre pane 1.1 W/m²K) 1.1W/m²K (centre pane 0.6W/m²K)
Document L CompliantYes
BS 6375-1:2009Yes
BS 7950:1997Yes
BS 4873Yes
Side Hung Max Width (mm)840
Side Hung Max Height (mm)1440
Top Hung Max Width (mm)1440
Top Hung Max Height (mm)2500
Fixed Max Width (mm)2100
Fixed Max Height (mm)2100
Tilt Turn Max Width (mm)1600
Tilt Turn Max Height (mm)2400
Tilt Turn Max Weight (kg)90kg
Single Door Max Width (mm)1000
Single Door Max Height (mm)2500
Double Door Max Width (mm)1000
Double Door Max Height (mm)2500
Glazing (mm)13mm-60mm (Sash) 4mm-51mm (Outer Frame)
Frame Depth (mm)65mm
